Heckler & Koch P7M8 9mm 4 Inch Semi Automatic Pistol, Manufactured 1986
Archival record: Specifications and condition reflect the firearm as listed at the time of auction.
Final Auction Price: $2,924.99

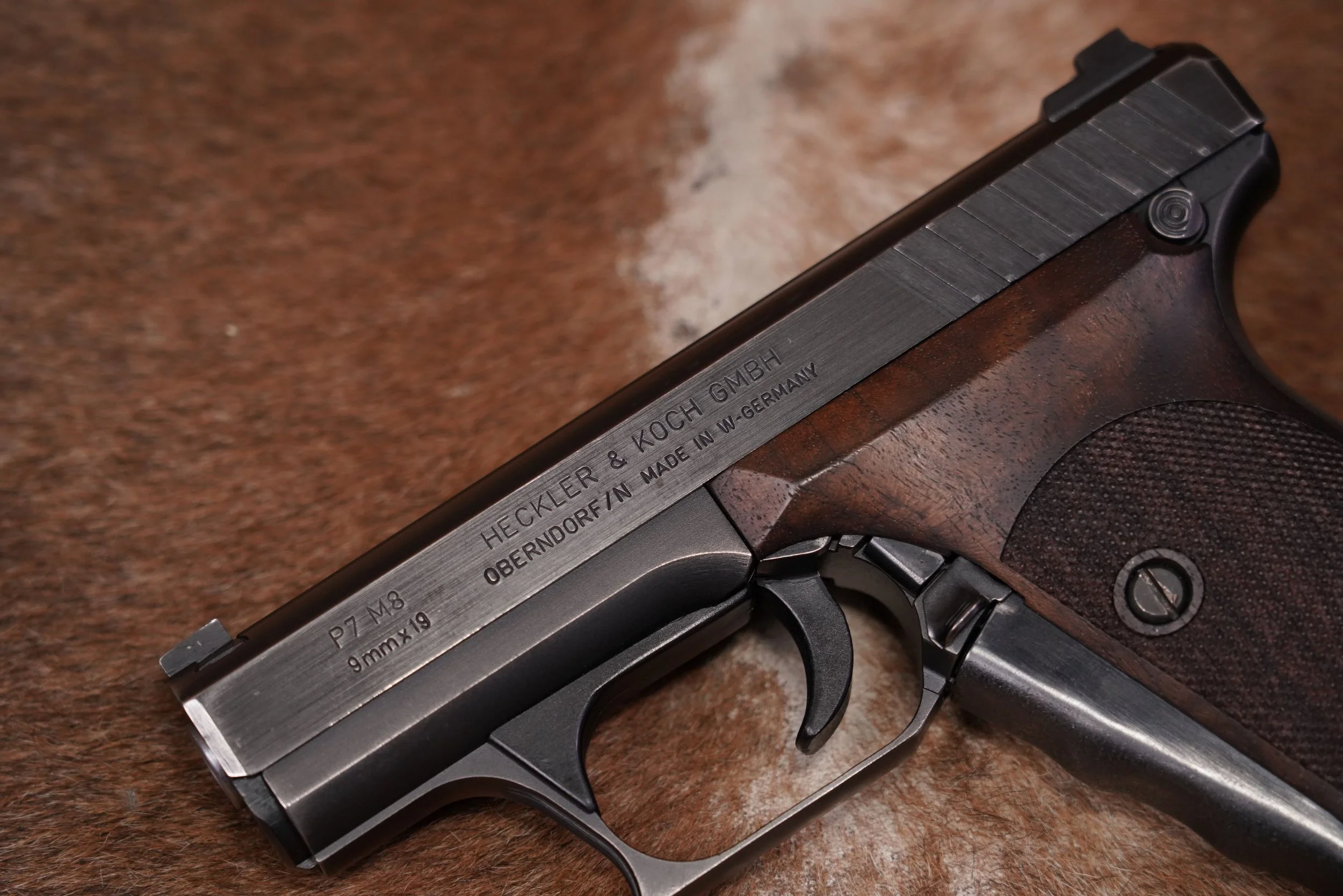

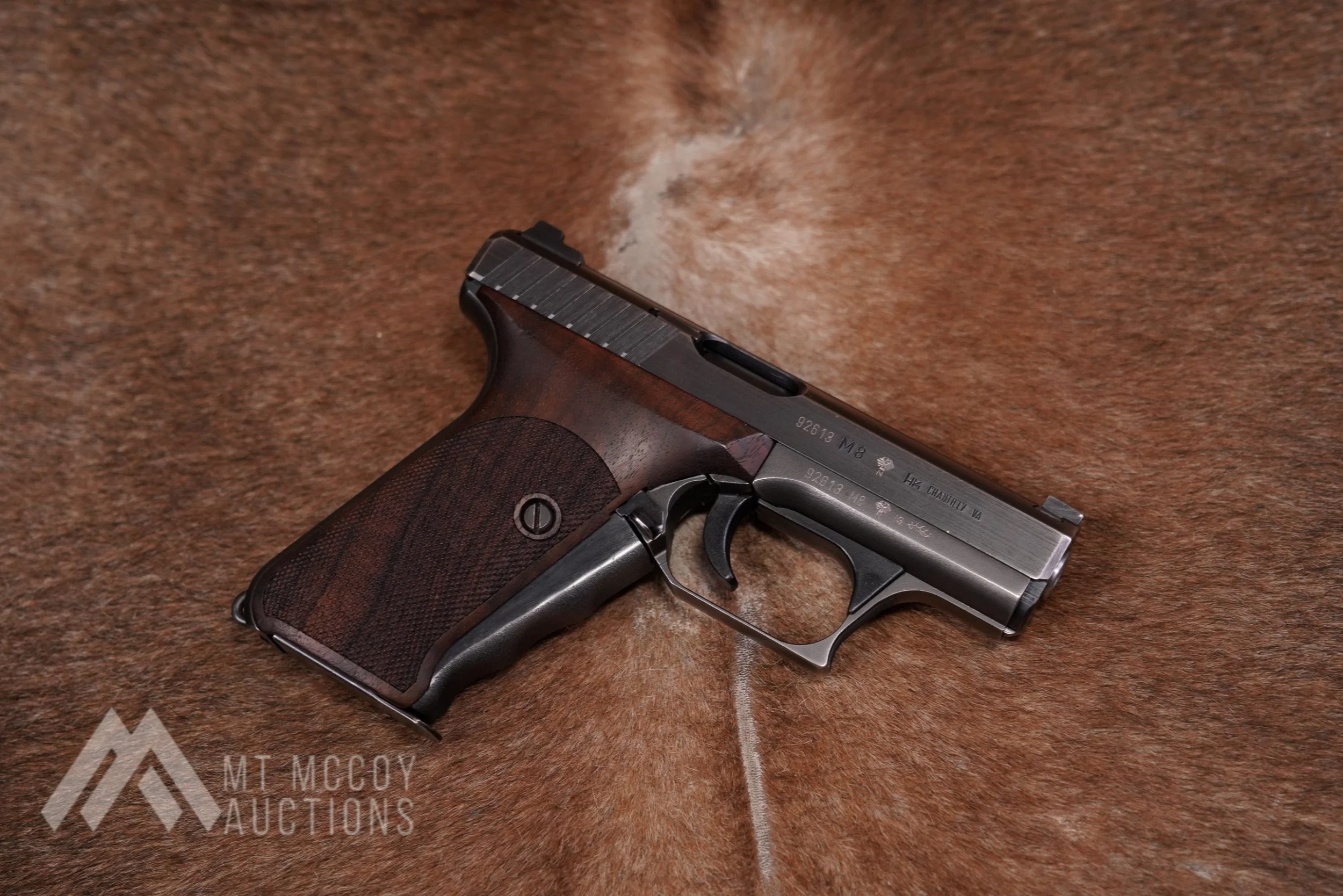

The Heckler & Koch P7M8 is one of the most recognizable and mechanically unconventional service pistols developed during the Cold War. Combining a squeeze cocking mechanism, gas delayed blowback operation, fixed barrel, polygonal rifling, and compact all steel construction, the P7 family remains unlike nearly any other production handgun. Manufactured in West Germany in 1986, this P7M8 retains approximately 98 percent of its original blued finish and is fitted with handsome Karl Nill Griffe checkered wood grips.
Identification
MMA#: 260505BE002

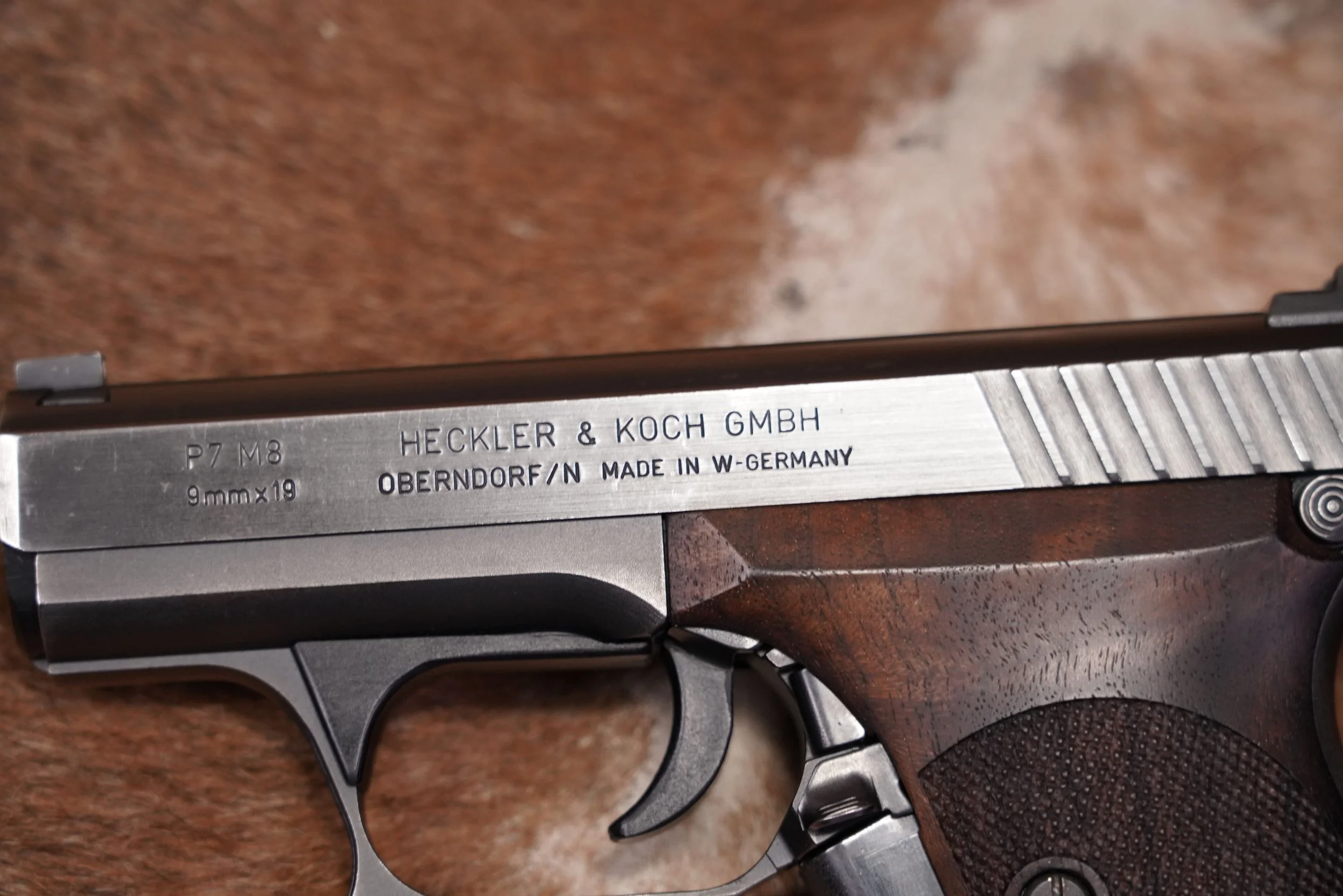

Make: Heckler & Koch
Model: P7M8

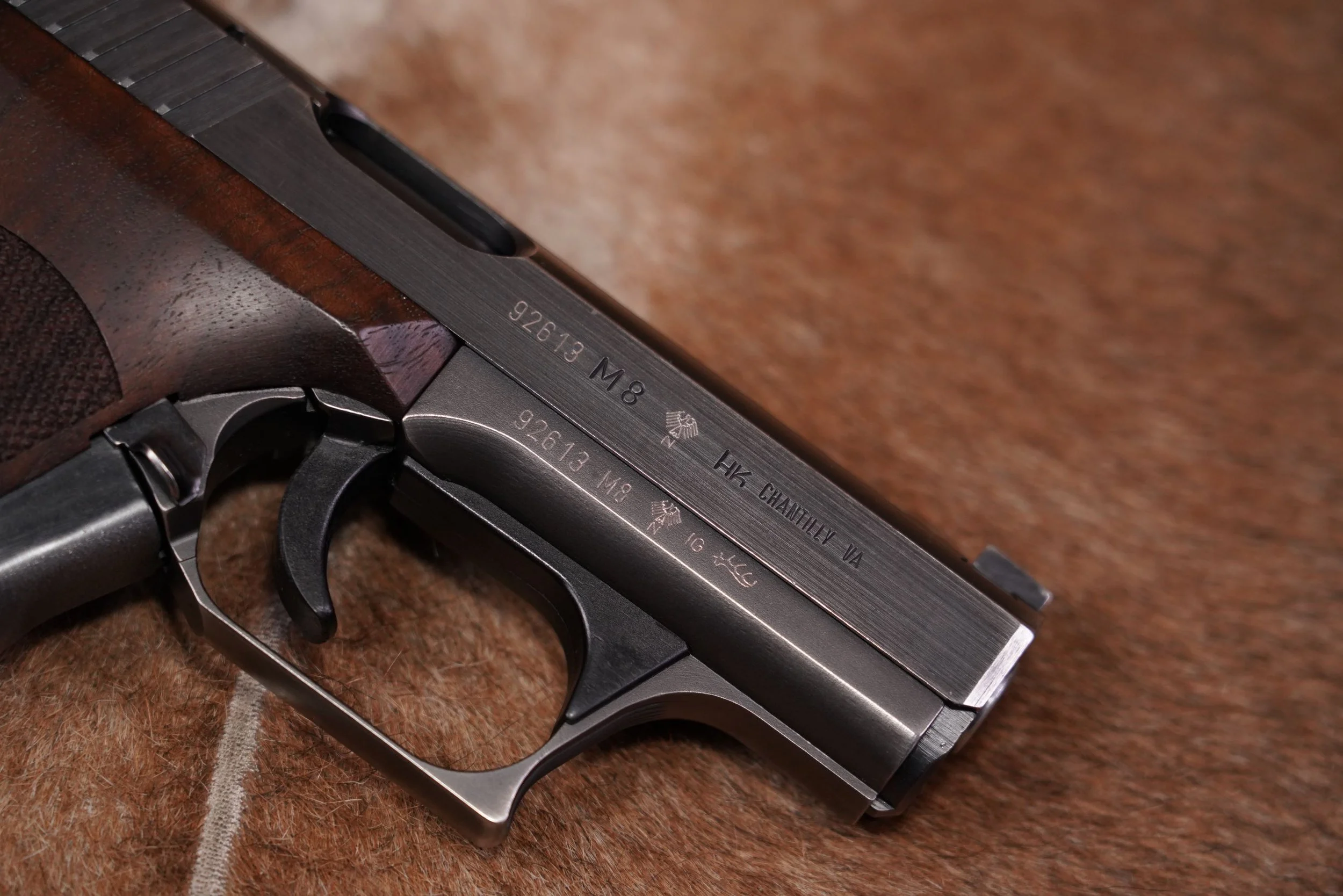

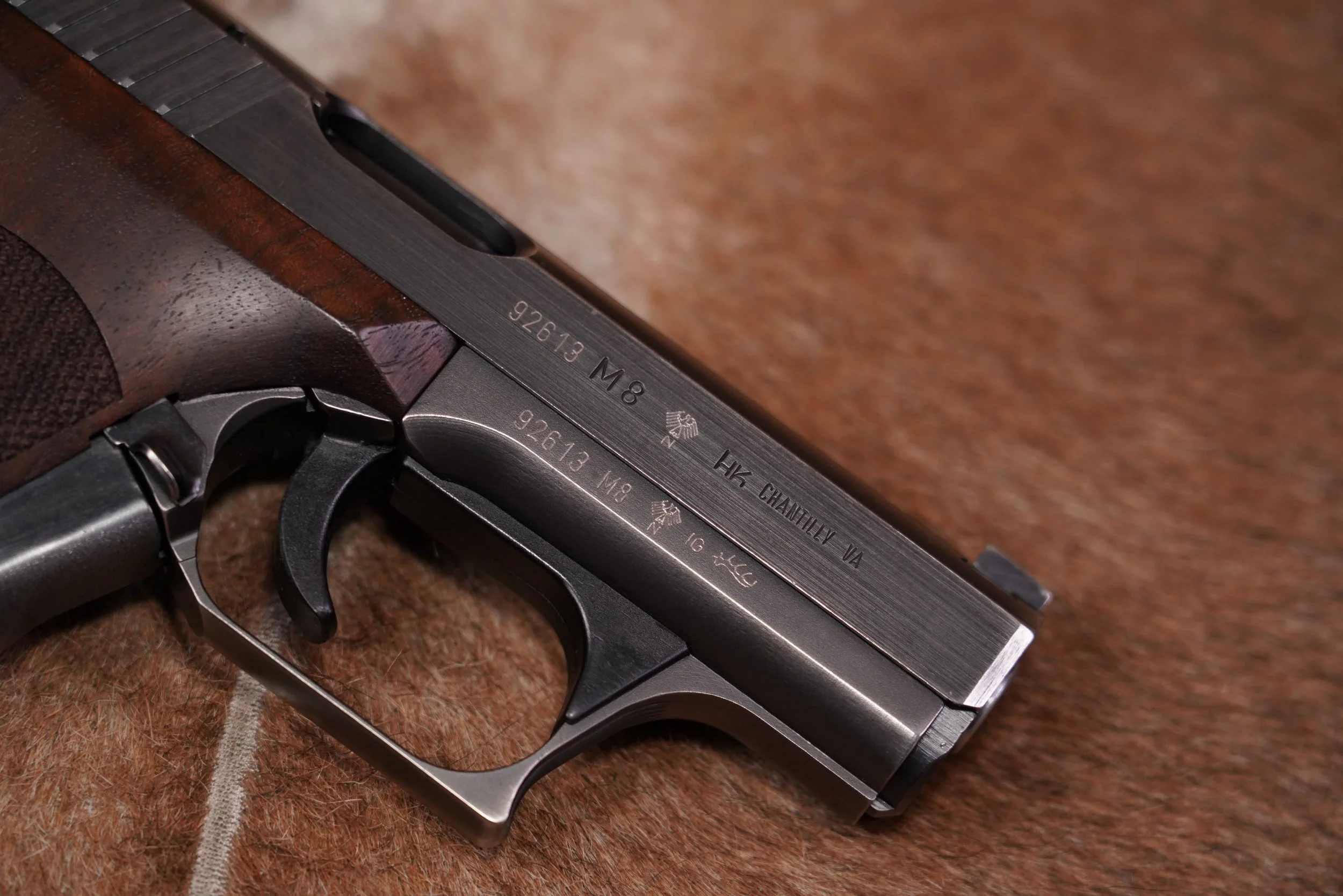

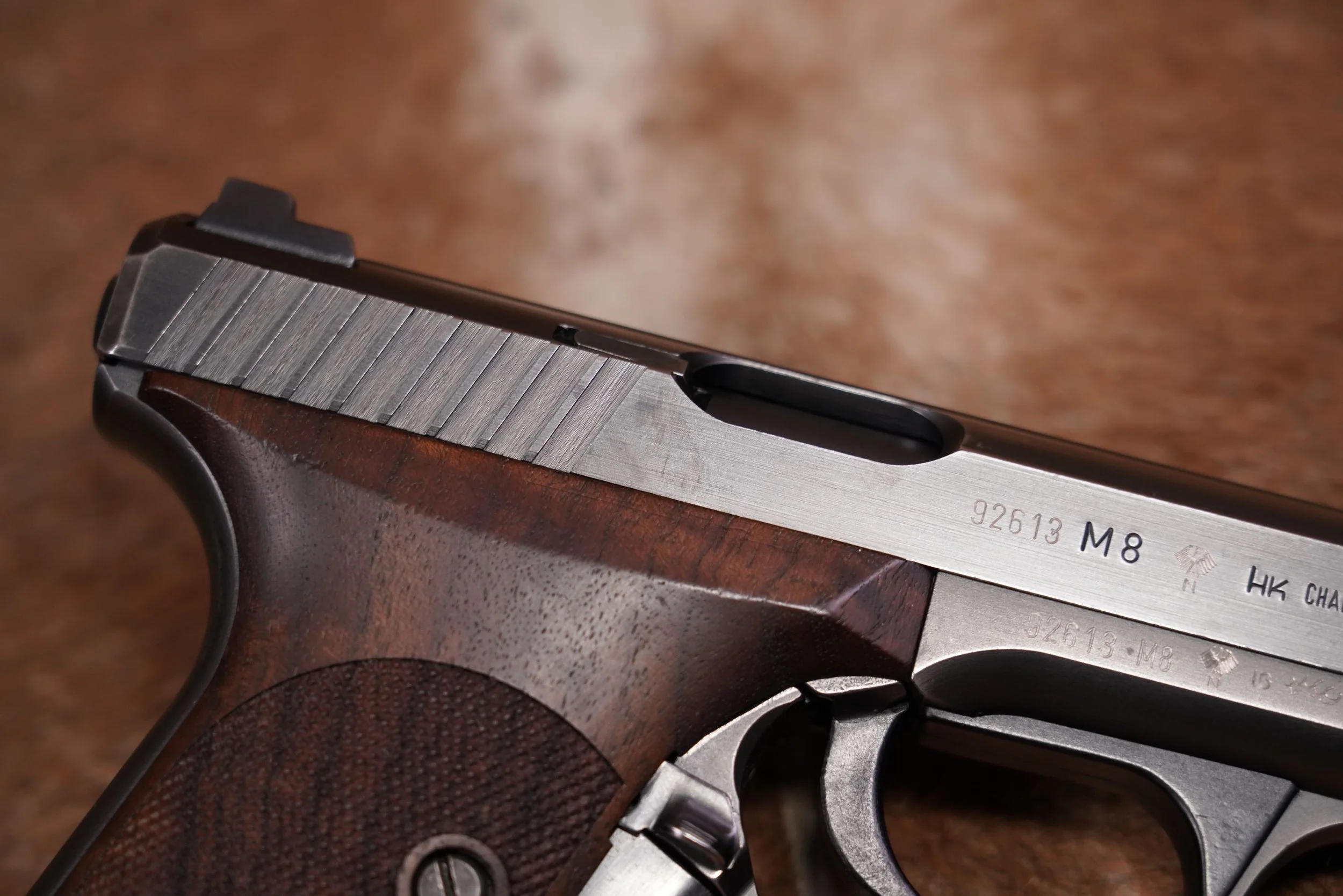

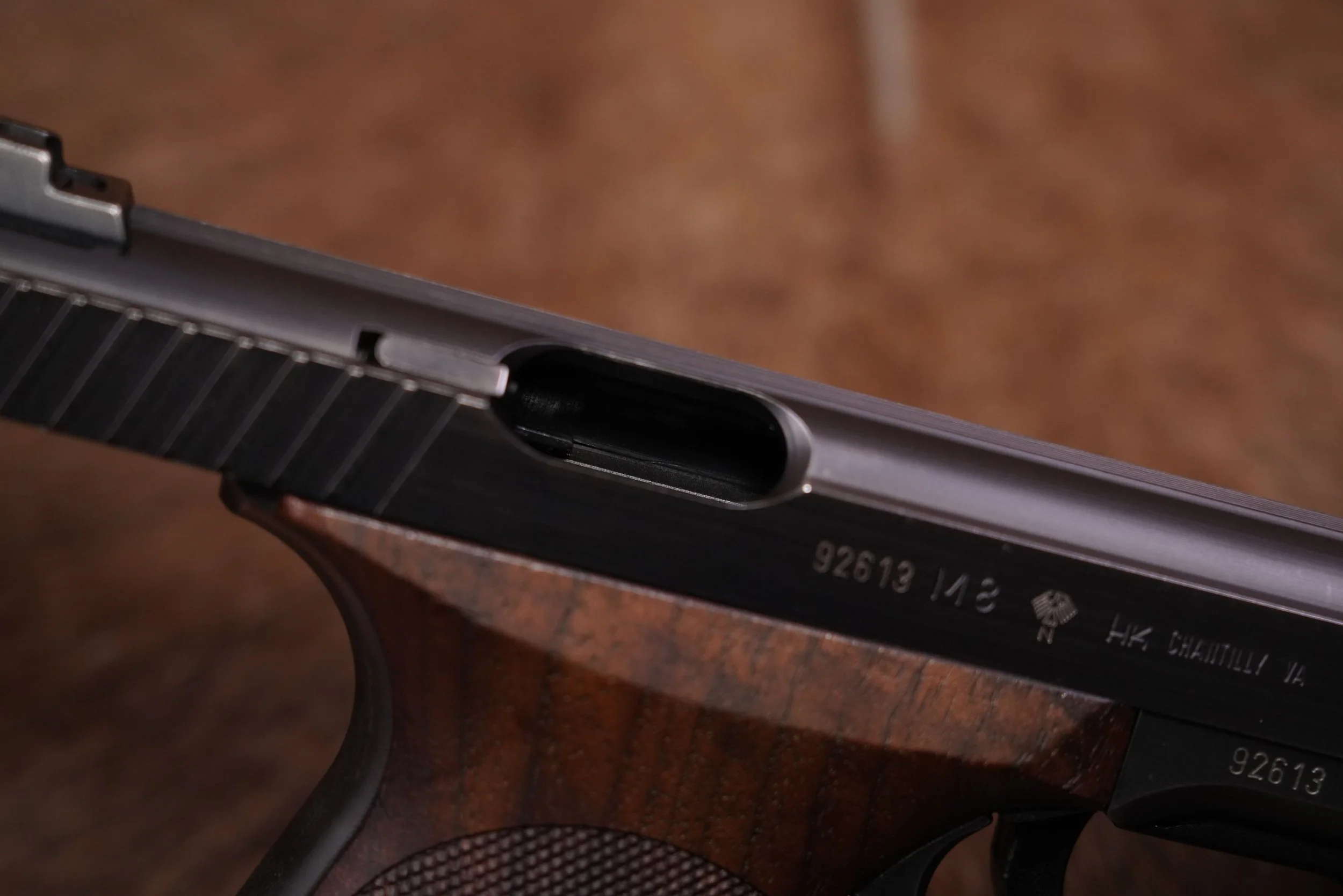

Serial Number: 92613
Year of Manufacture: 1986, IG Date Code
Caliber: 9mm Parabellum
Action Type: Grip Cocked, Gas Delayed Blowback Semi Automatic Pistol Fed by Detachable Magazine
Barrel Length: 4 Inches
Sights / Optics

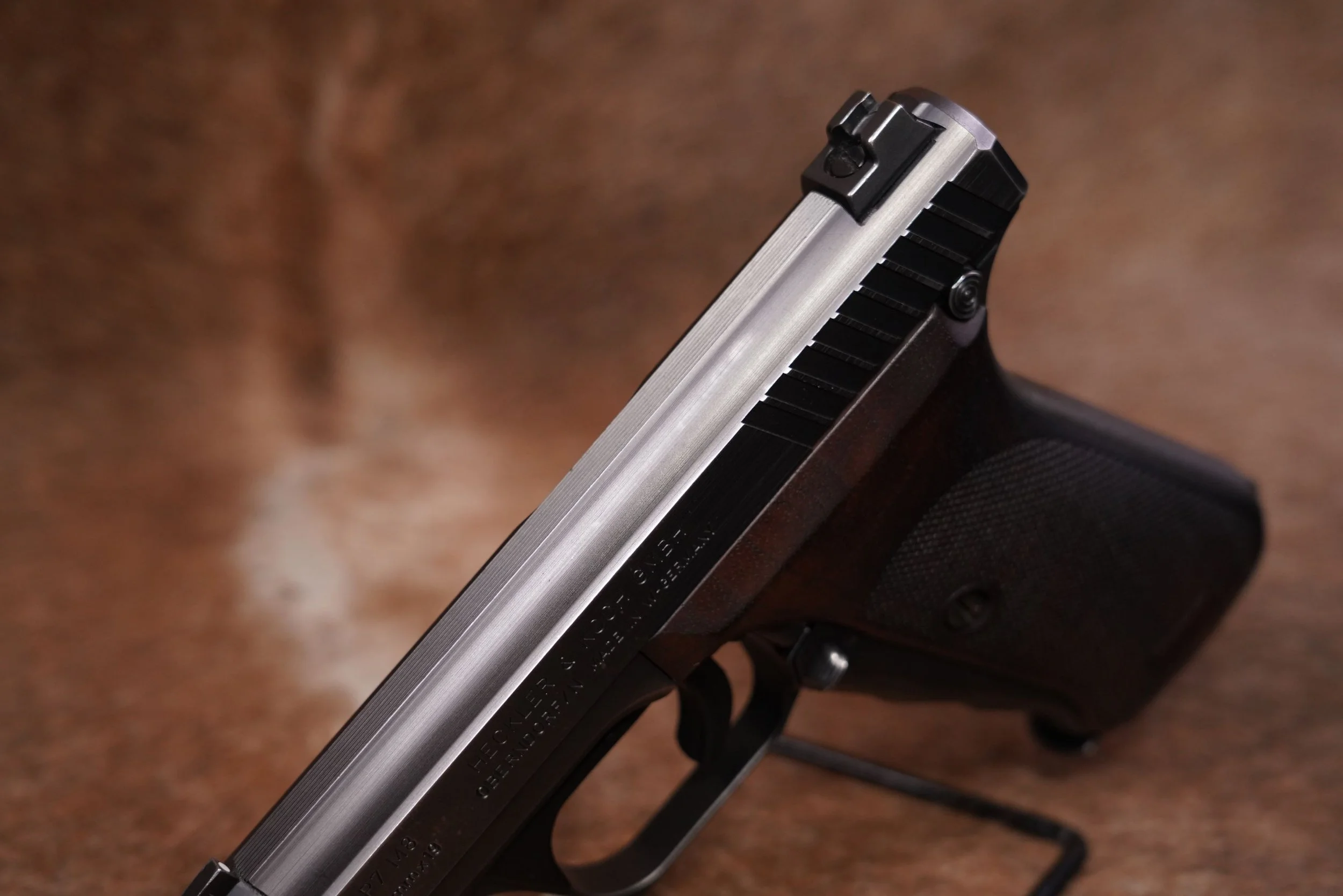

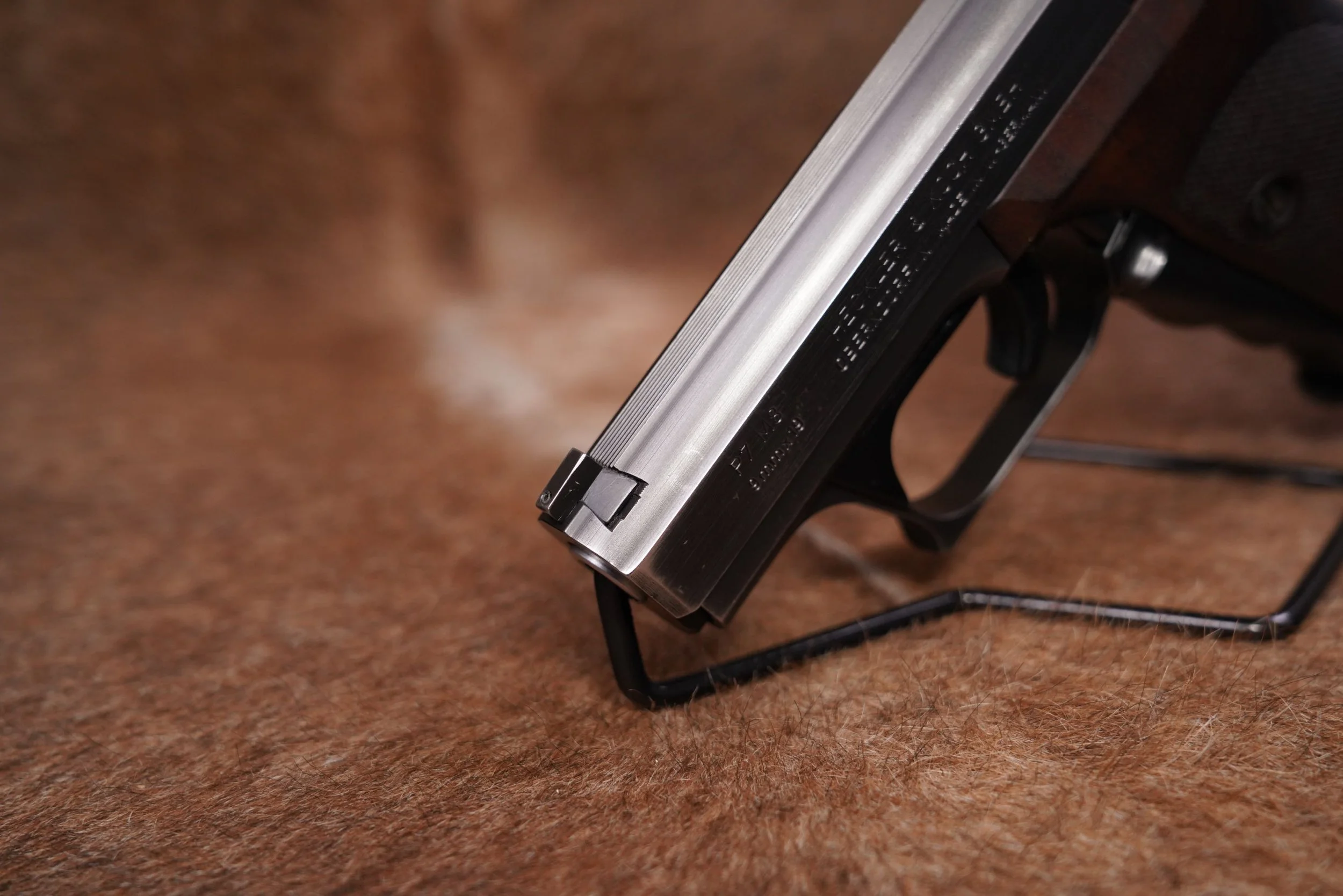

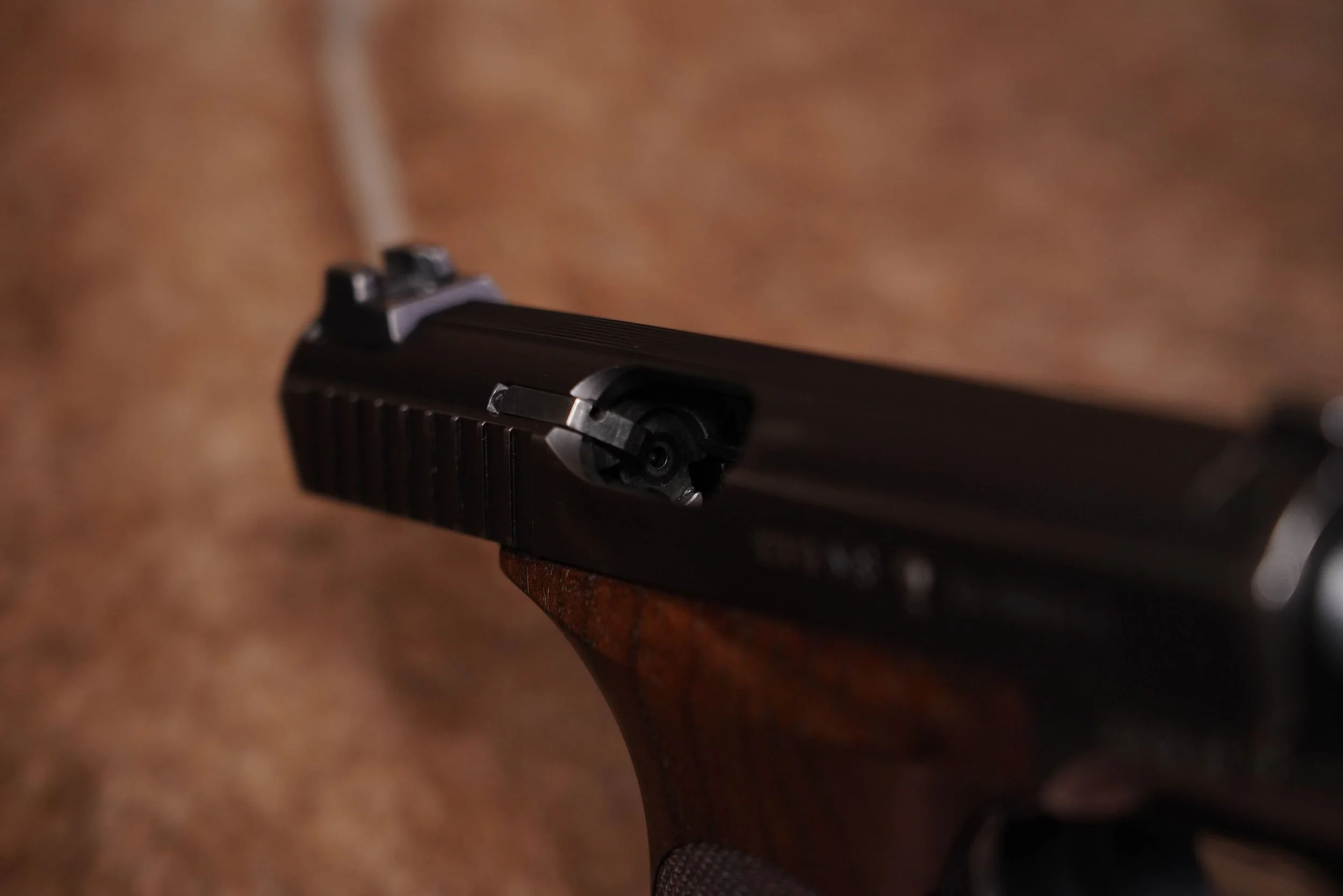

The front sight is a blade with a white dot dovetailed into the slide. The rear sight is a flat top square notch with two white dots and is dovetailed and set screwed to the slide.

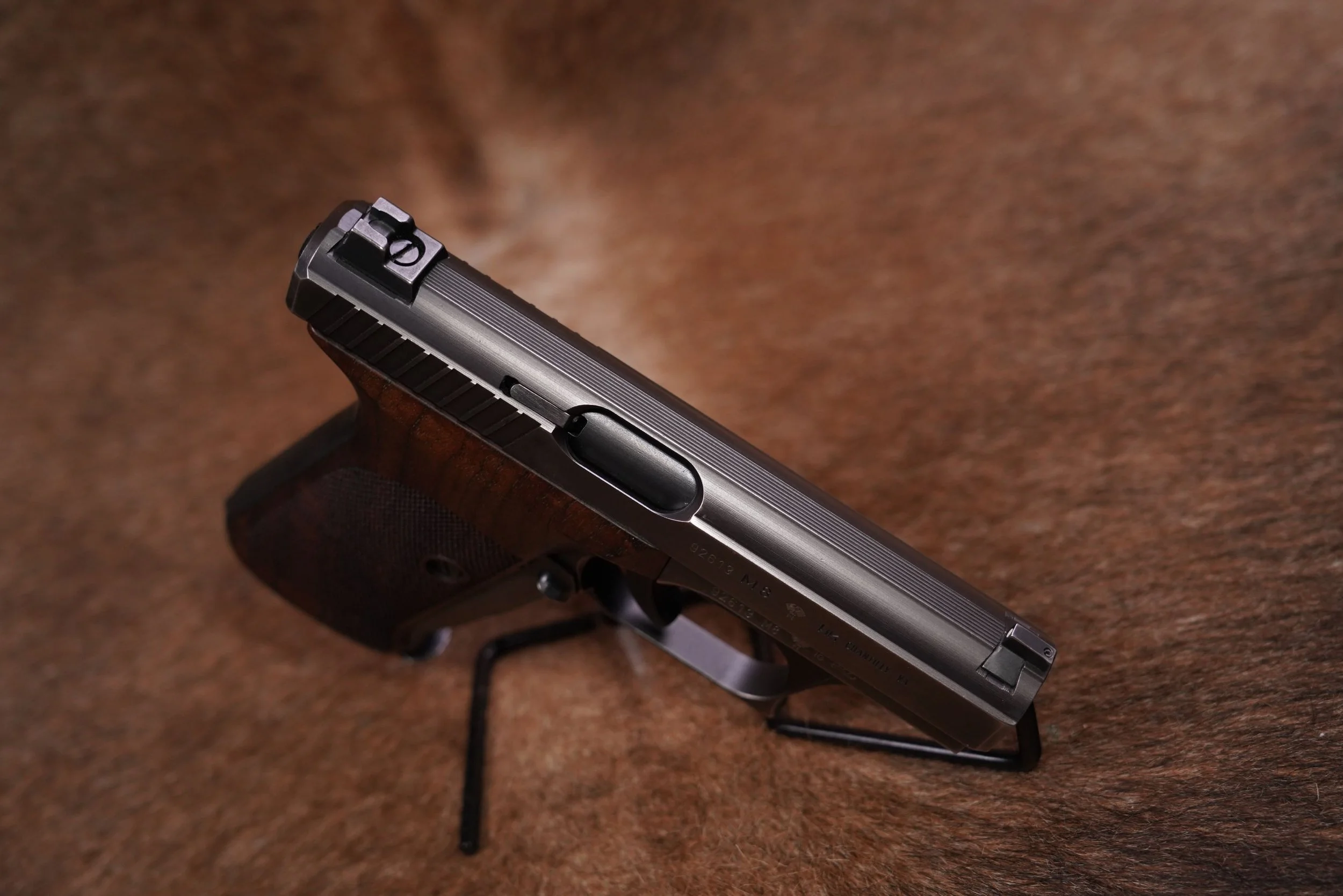

The top of the slide incorporates a low profile serrated rib to help reduce glare and provide a clean sighting plane.
Stock / Grip Configuration & Condition

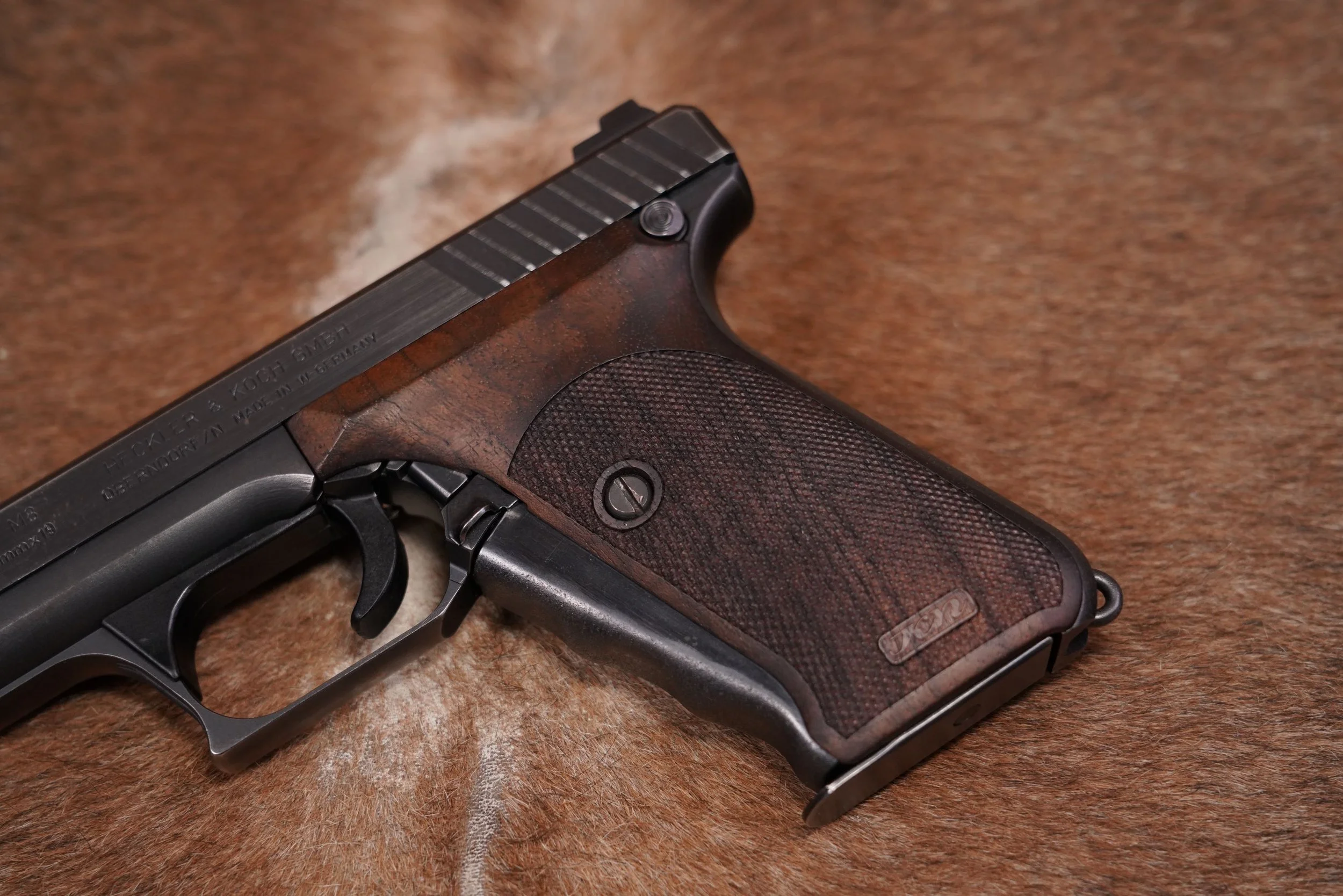

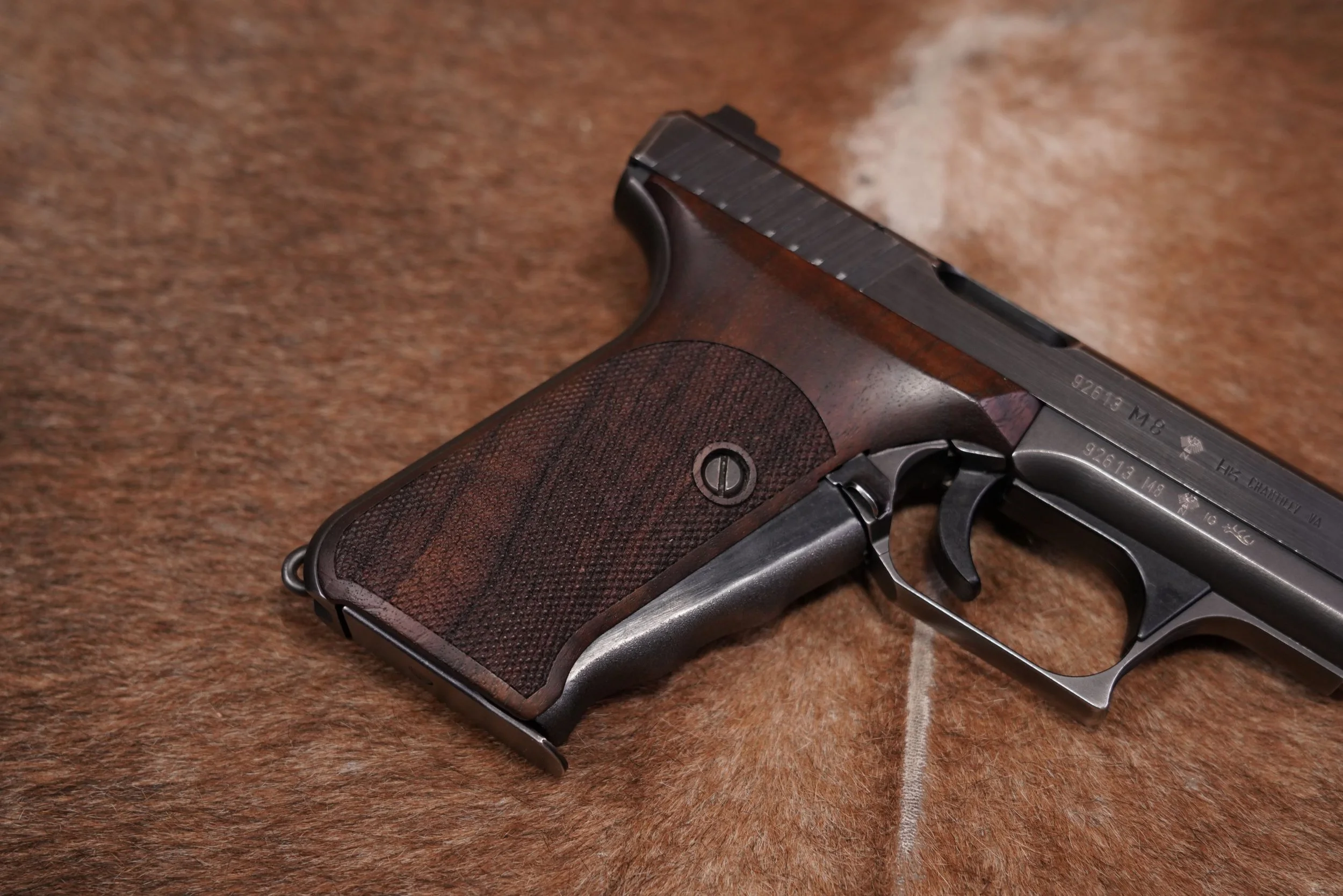

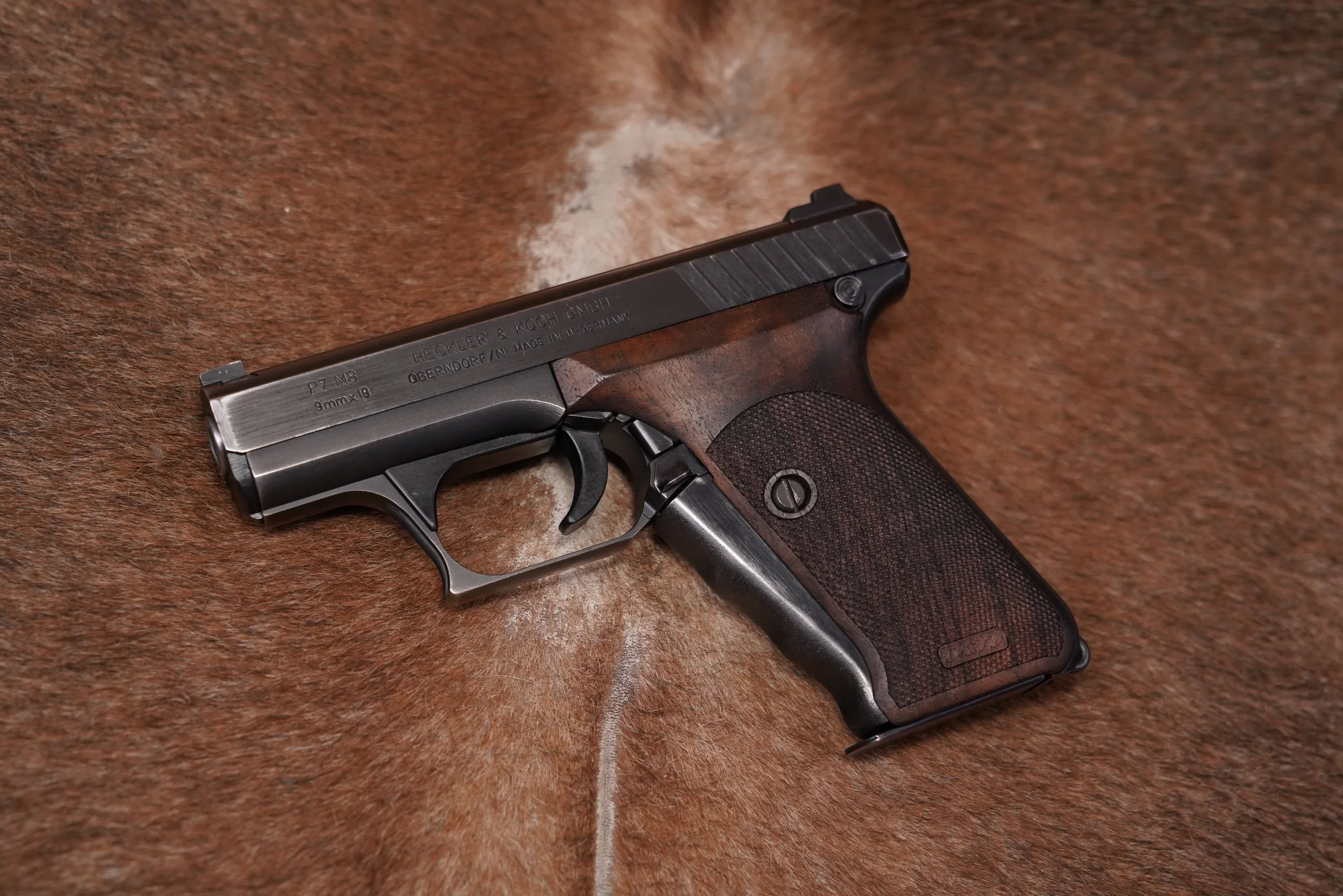

The pistol is fitted with two piece Karl Nill Griffe checkered wood grip panels. The left panel is marked “KN” near the bottom.
The grips remain in Excellent condition and give this example a distinctive appearance compared with the more commonly encountered synthetic P7 grips.
Overall grip condition: Excellent.
Finish & Overall Condition
Type of Finish: Blue
Finish Originality: Original
This pistol retains approximately 98 percent of its original metal finish. Minor operational wear is present and consistent with normal use.
Overall condition: Fine.
Bore & Mechanics

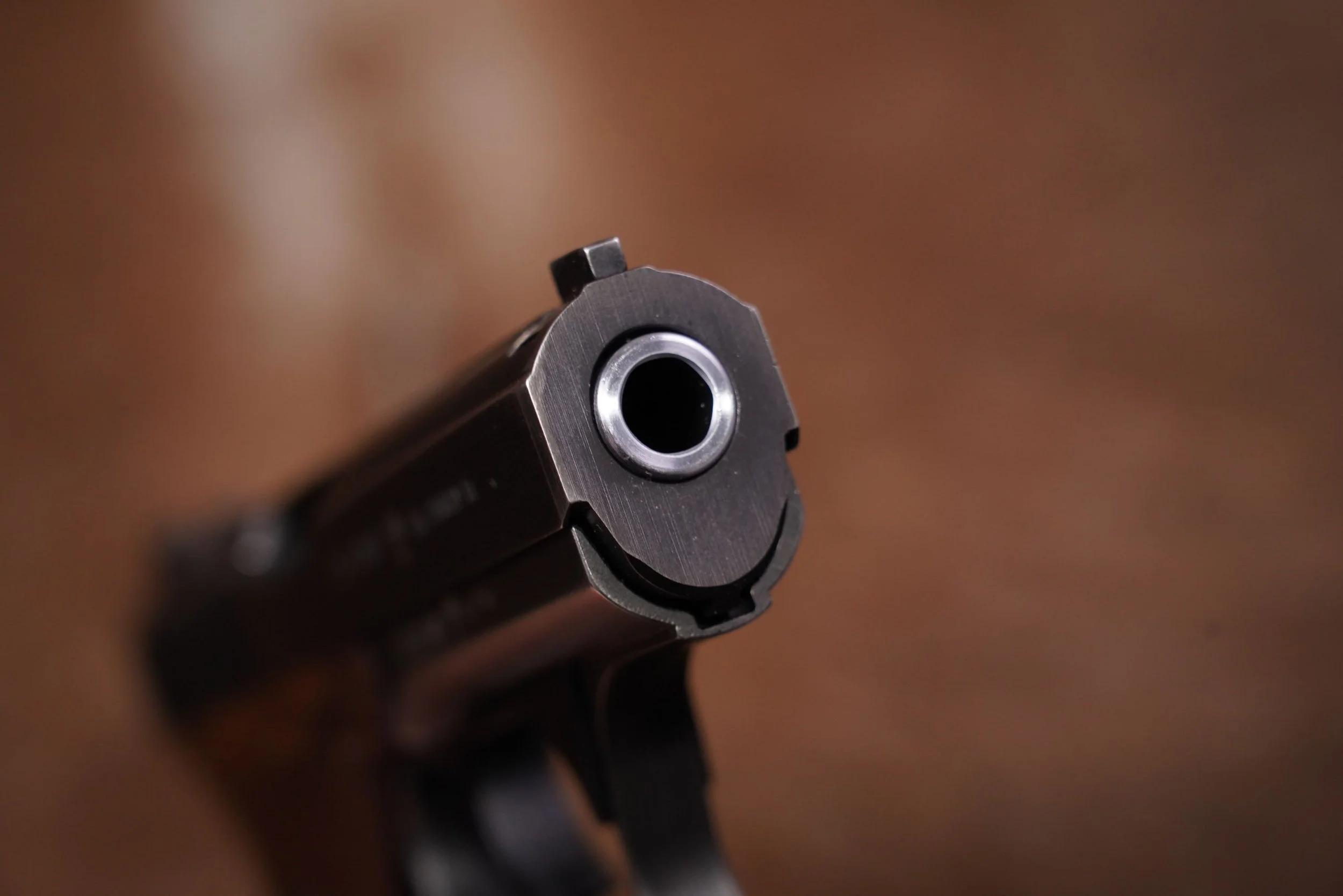

Bore Condition: The bore is bright and the polygonal rifling remains well defined. In the original evaluator’s opinion, the bore rates 9.5 out of 10.
Mechanics: The action functions correctly. The P7M8 operates using H&K’s distinctive gas delayed blowback system.
Rather than using a conventional external hammer or striker arrangement, the pistol is cocked by squeezing the front strap of the grip. Once cocked, the system provides a short trigger pull. Releasing the squeeze cocker returns the pistol to its uncocked state.
Slide to frame fit is tight.
The pistol was not test fired. As with all previously owned firearms, a thorough cleaning may be desired before use.
Box, Paperwork & Accessories

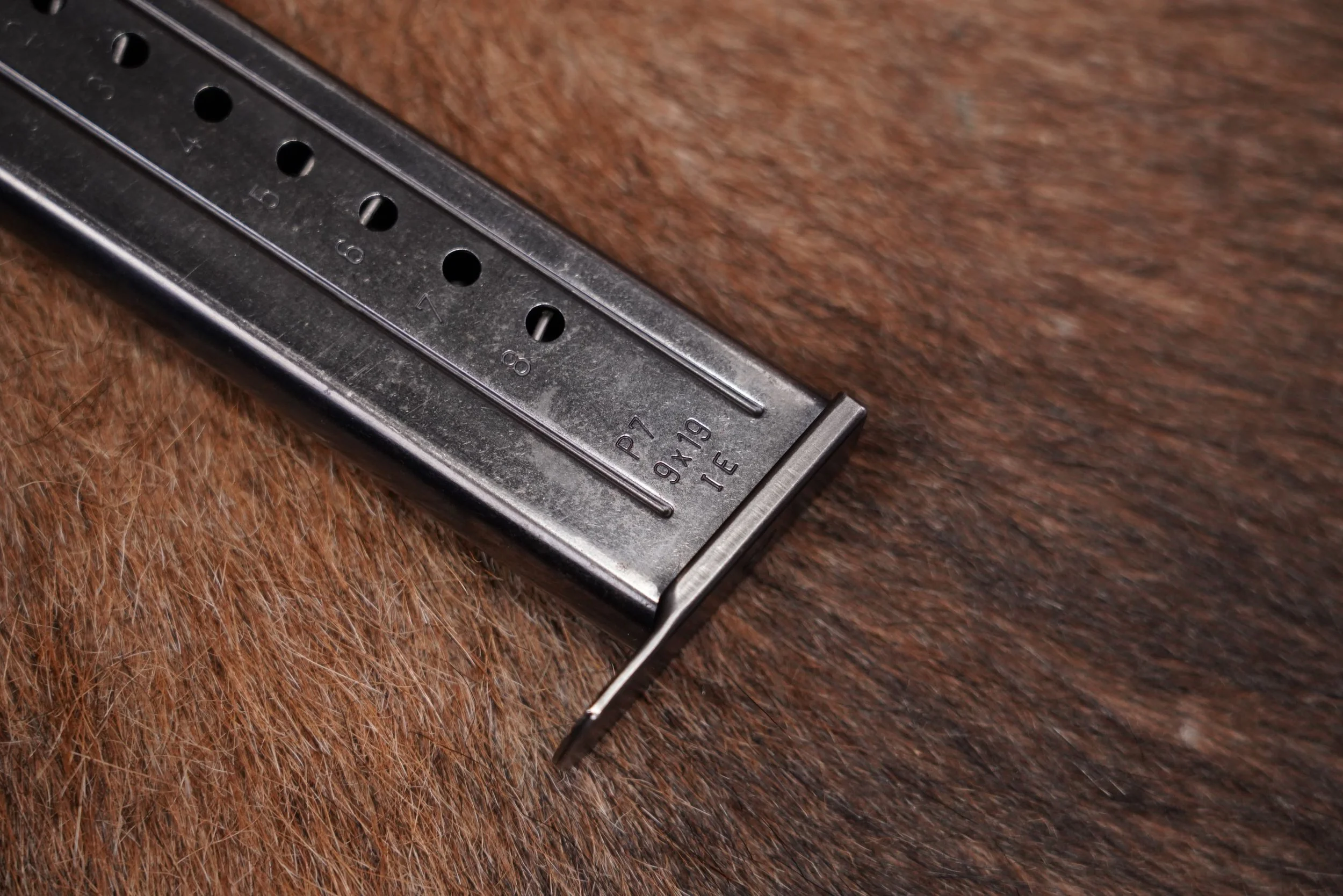

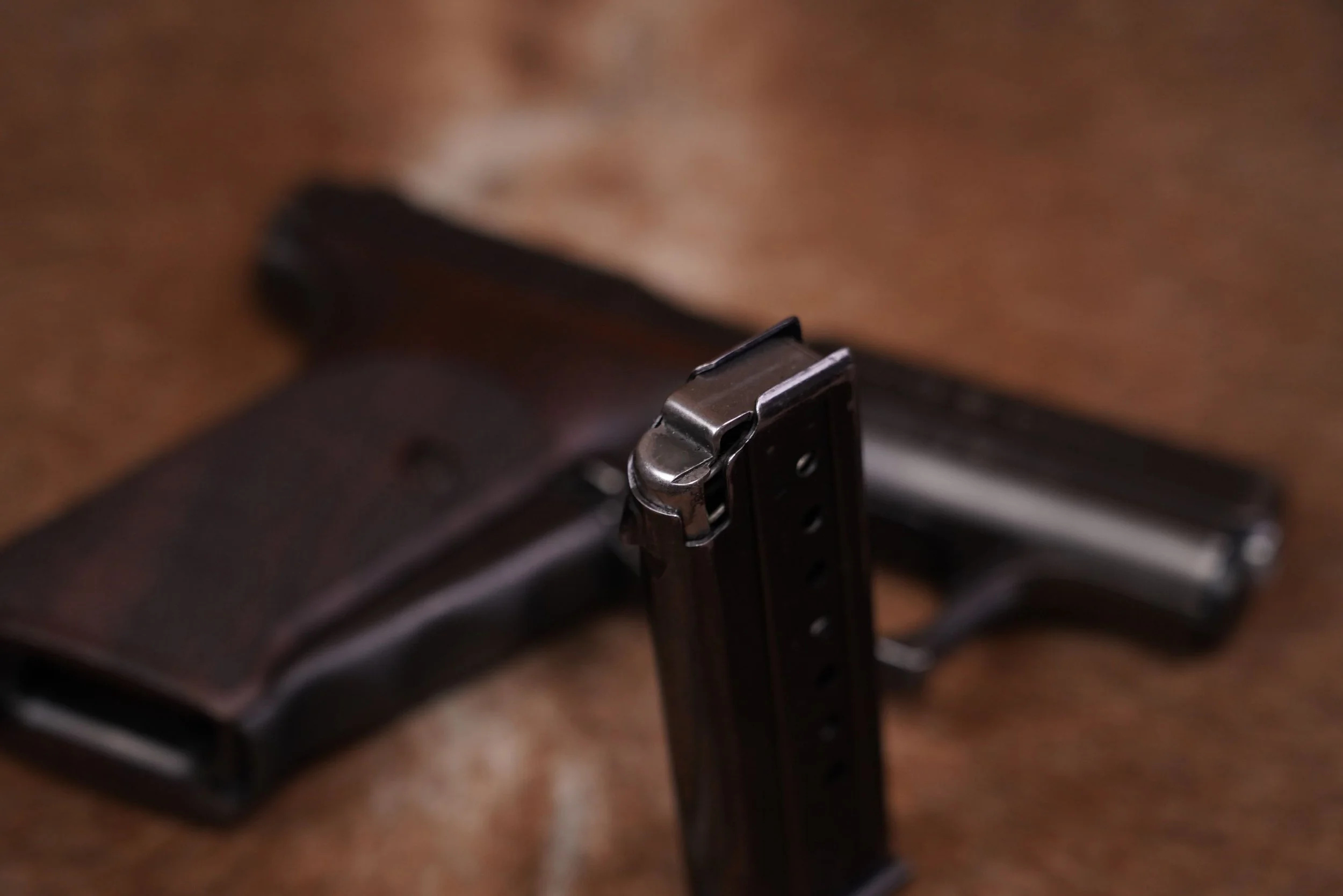

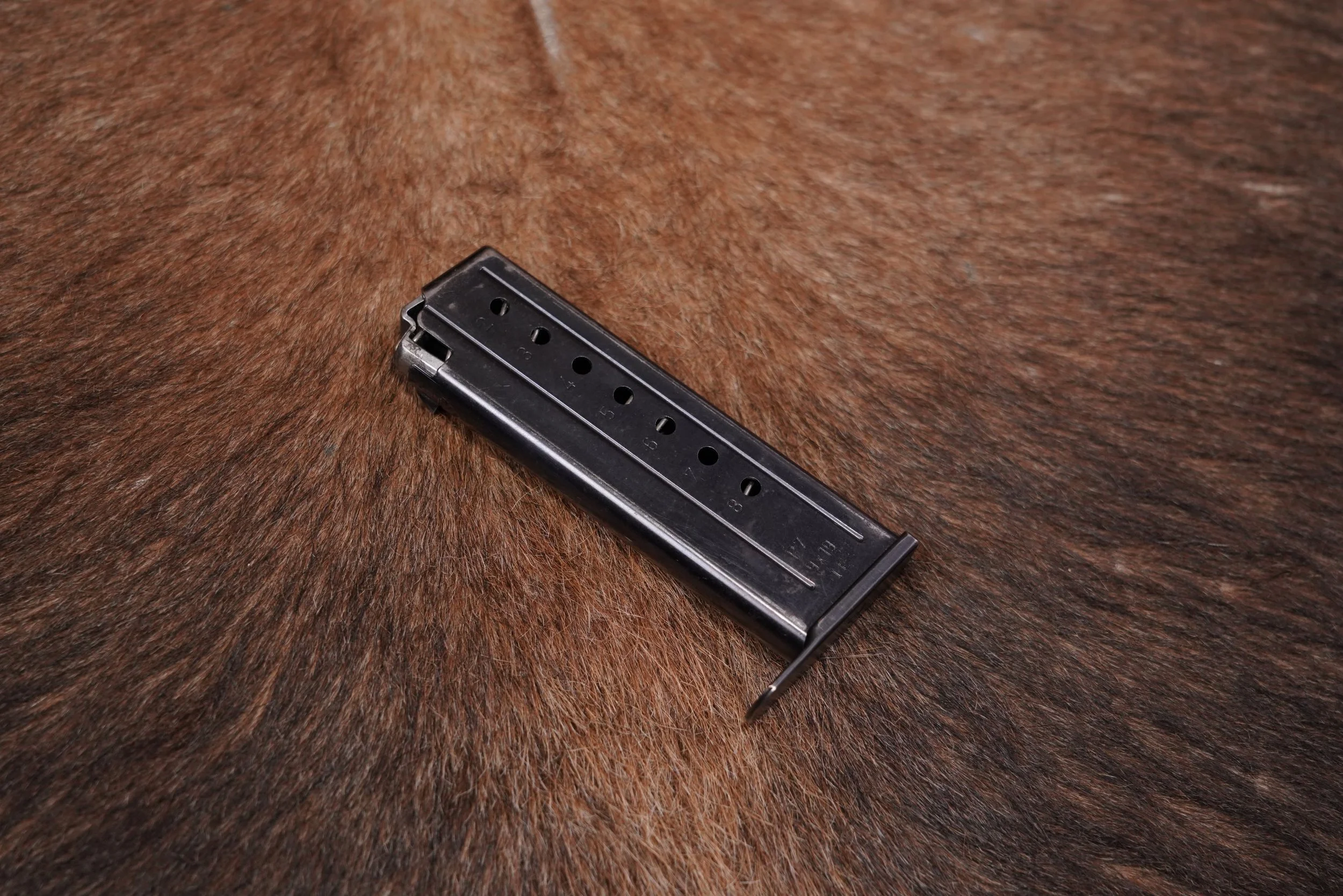

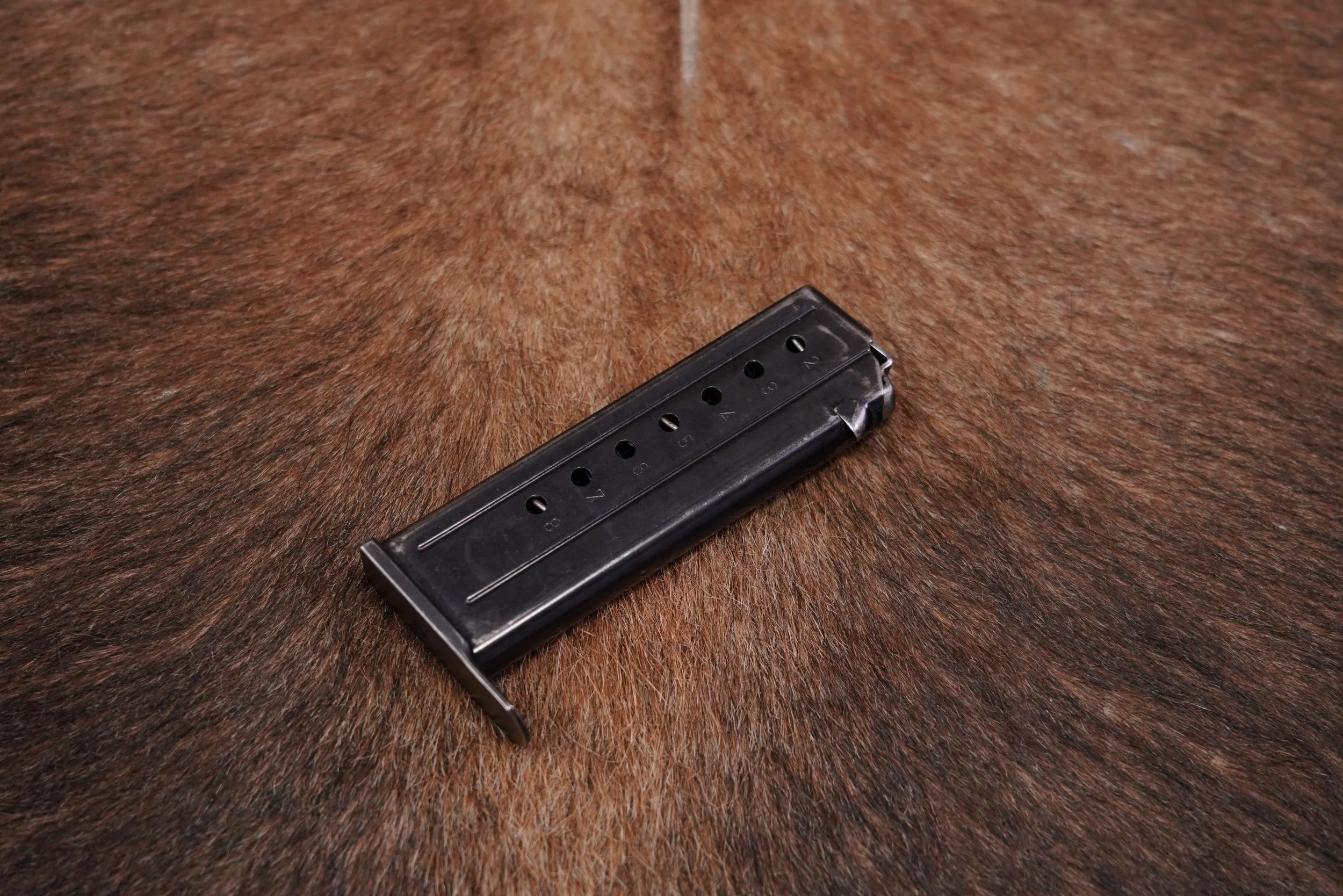

Included is one 8 round magazine.
Our Assessment
The H&K P7 emerged from a particularly important period in West German service pistol development. Following the 1972 Munich Olympics terrorist attack, West German authorities sought a new generation of 9mm police sidearms capable of replacing older pistols chambered for cartridges such as 7.65mm Browning.
The resulting program produced several notable designs. Among those ultimately selected for West German police use were the SIG Sauer P225, adopted as the P6, the Walther P5, and Heckler & Koch’s radically different P7 family.
H&K approached the problem differently from nearly everyone else.
Instead of relying on a conventional locked breech system, the P7 uses gas delayed blowback operation. Gas tapped from the barrel acts against a piston beneath it, delaying rearward movement of the slide until chamber pressure has fallen. The arrangement allows the pistol to use a fixed barrel, contributing to the P7’s reputation for excellent mechanical accuracy.
Even more distinctive is its squeeze cocking system. The front strap of the grip acts as the cocking lever. Squeezing it prepares the pistol to fire, while releasing it returns the system to an uncocked condition. The concept was intended to combine rapid readiness with a high degree of safety when carried with a loaded chamber.

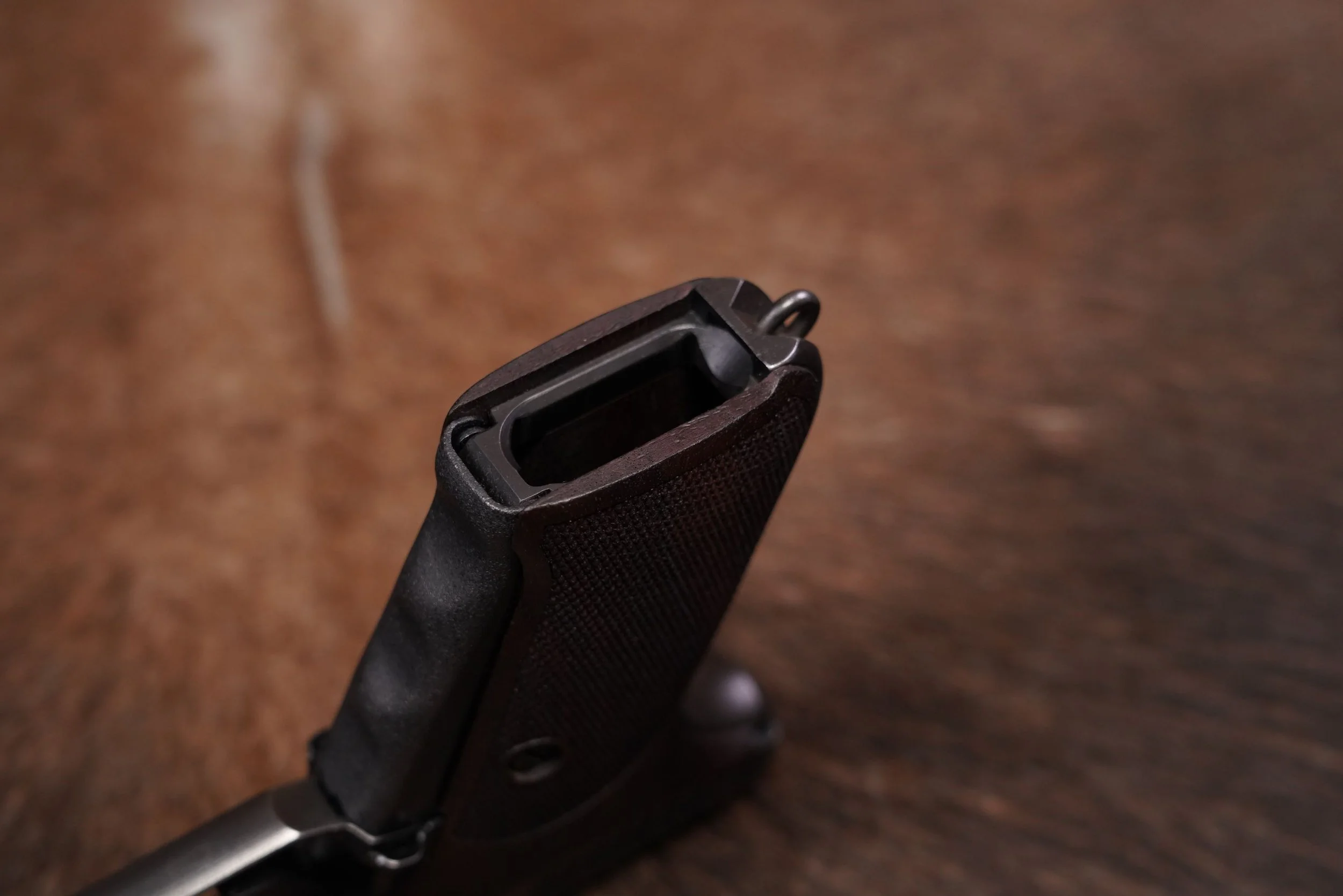

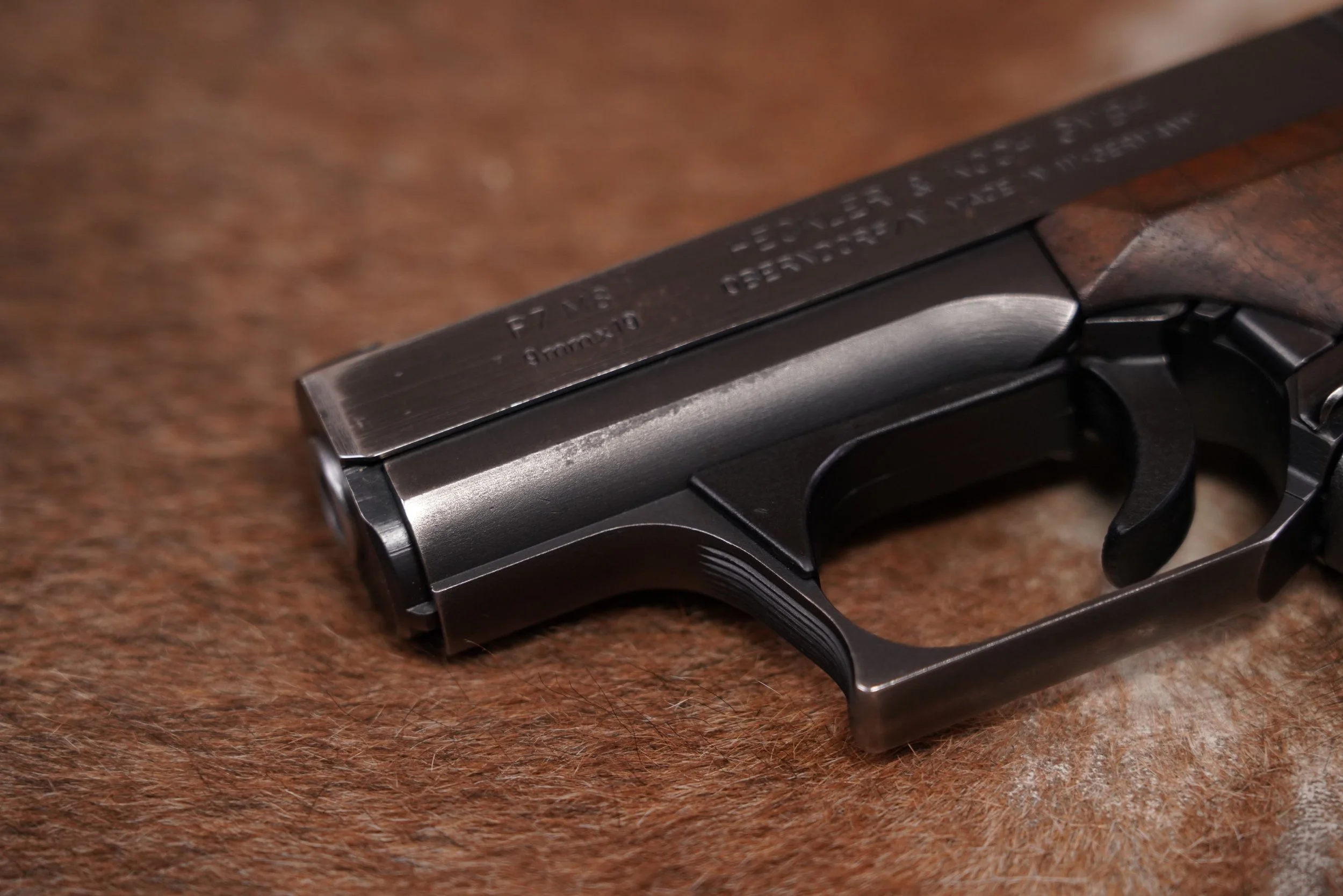

The P7M8 further refined the platform. One issue with the original configuration was heat generated around the gas system during sustained firing. The M8 incorporated changes around the trigger guard, including a heat shield, to better protect the shooter’s trigger finger. The commercial P7M8 configuration is also associated with the trigger guard area magazine release rather than the heel release used on earlier P7 variants.
This particular pistol was manufactured in 1986 and remains in Fine condition with approximately 98 percent of its original blued finish. Its polygonal rifling remains well defined, with the bore rated 9.5 out of 10. The Karl Nill Griffe checkered wood panels add another appealing element to an already distinctive pistol.
More than four decades after the P7 entered production, its combination of a fixed barrel, gas delayed action, squeeze cocker, low profile construction, and unmistakable H&K engineering remains unusual. For collectors of Heckler & Koch firearms, Cold War service pistols, or unconventional handgun designs, the P7M8 represents one of the company’s most fascinating achievements.
