Heckler & Koch P7M8 9mm Gas Delayed Blowback Pistol 4 Inch Barrel 2002
Archival record: Specifications and condition reflect the firearm as listed at the time of auction.
Final Auction Price: $2,875.00
The Heckler and Koch P7M8 is widely regarded as one of the most innovative service pistols ever developed. Featuring a unique gas delayed blowback system and the distinctive squeeze cocking mechanism, the P7 series combined exceptional safety, accuracy, and engineering precision. This example, manufactured in 2002, represents the refined P7M8 variant produced during the later years of the platform’s production.
Identification
MMA#: 251117CM026
Make: Heckler and Koch
Model: P7M8
Serial Number: 16-134065
Year of Manufacture: 2002 (AG date code)
Caliber: 9mm Parabellum
Action Type: Semi automatic, grip cocked, gas delayed blowback pistol with removable magazine
Barrel Length: 4 inches
Sights
The pistol is equipped with a three dot sighting system. The front sight is a dovetailed blade with a single white dot. The rear sight is a flat top square notch unit with two white dots, also dovetailed into the slide.
The slide features a low profile serrated rib along the top surface to reduce glare and improve sight picture clarity.
Grip Configuration and Condition
The pistol is fitted with HK branded aftermarket grip panels with textured grooves. The grips show light handling wear, slightly more visible on the left panel. There are no cracks or chips present.
Overall, the grips rate in Fine Plus condition.
Finish and Overall Condition
Type of Finish: Blued
Finish Originality: Original
This handgun retains approximately 98 percent of its original finish. The slide exhibits a slight plum hue, a coloration sometimes seen on blued HK pistols of the era. There is faint thinning on some leading edges along with minor handling marks. Screw heads remain sharp and the markings are crisp and clear.
Overall, the pistol rates in Fine to Excellent condition.
Bore Condition

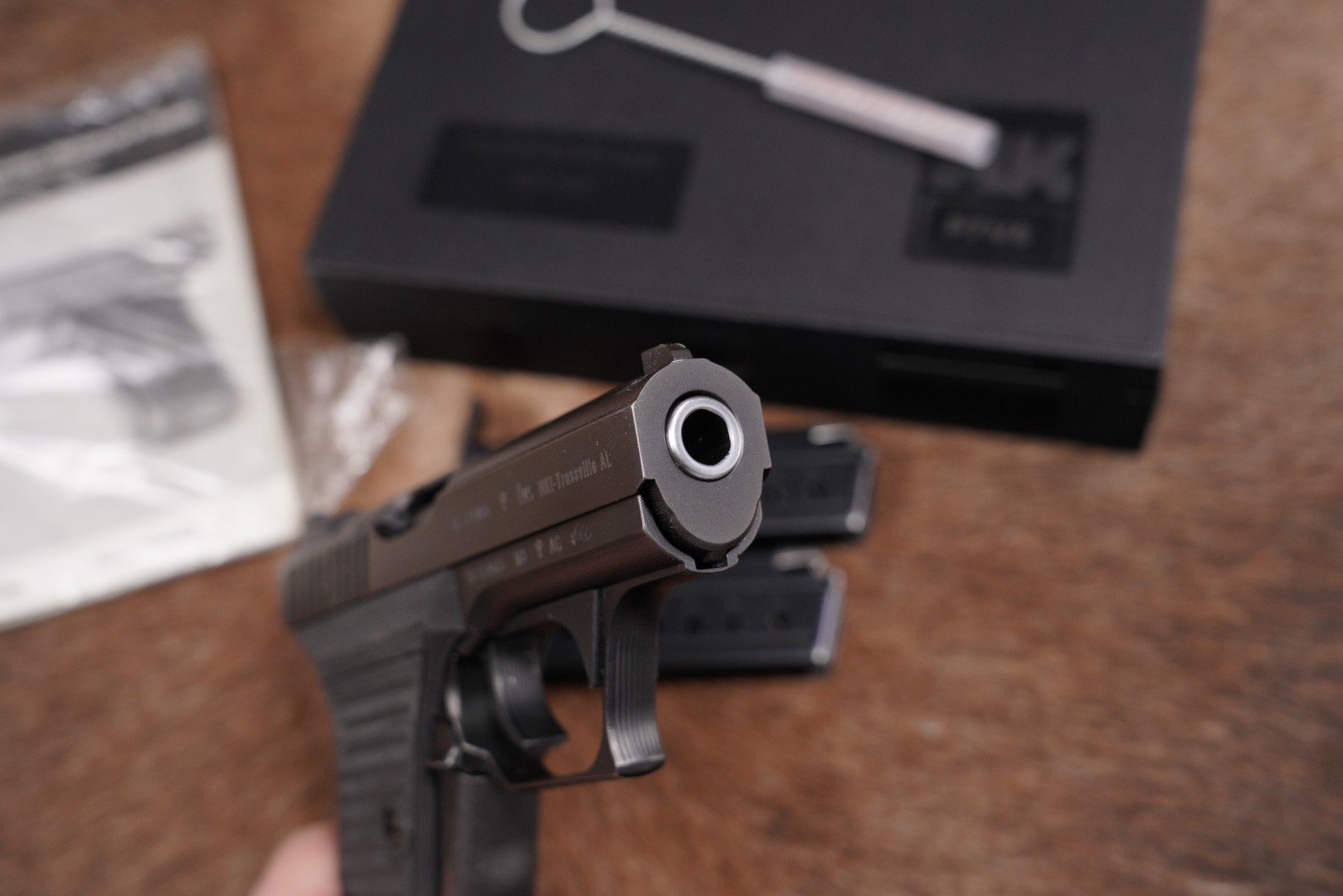

The bore is bright and the polygonal rifling is well defined. There is no erosion present. In the writer’s opinion, the bore rates 10 out of 10.
Mechanics
The action functions correctly. The P7 series uses a gas delayed blowback system combined with HK’s distinctive squeeze cocking lever integrated into the front strap. Compressing the front strap cocks the firing mechanism and provides a short, smooth trigger pull.
The pistol features an ambidextrous magazine release located at the rear of the trigger guard. Slide to frame fit remains tight. The pistol was not test fired. As with all used firearms, a thorough cleaning may be desired before use.
Box, Paperwork, and Accessories

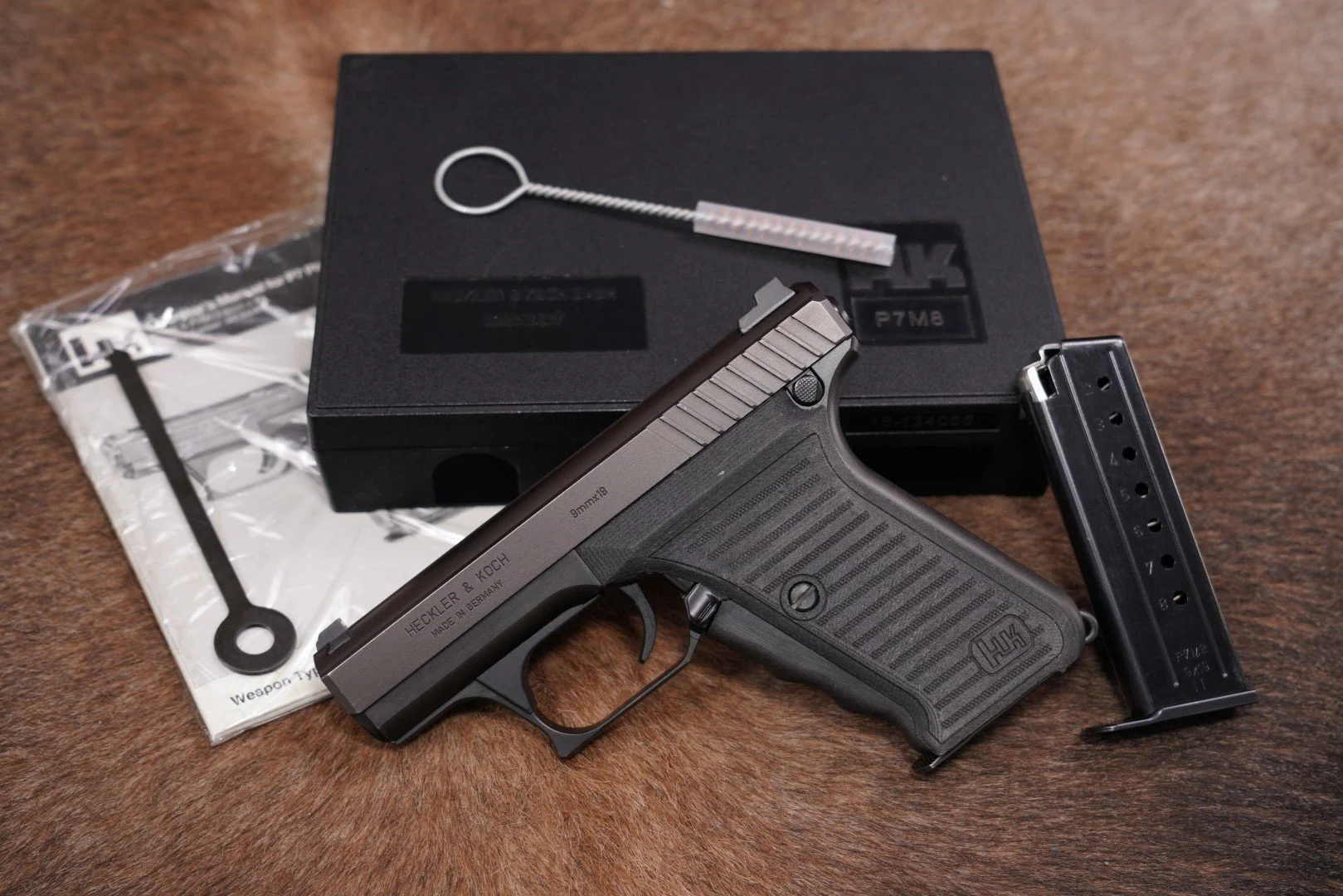

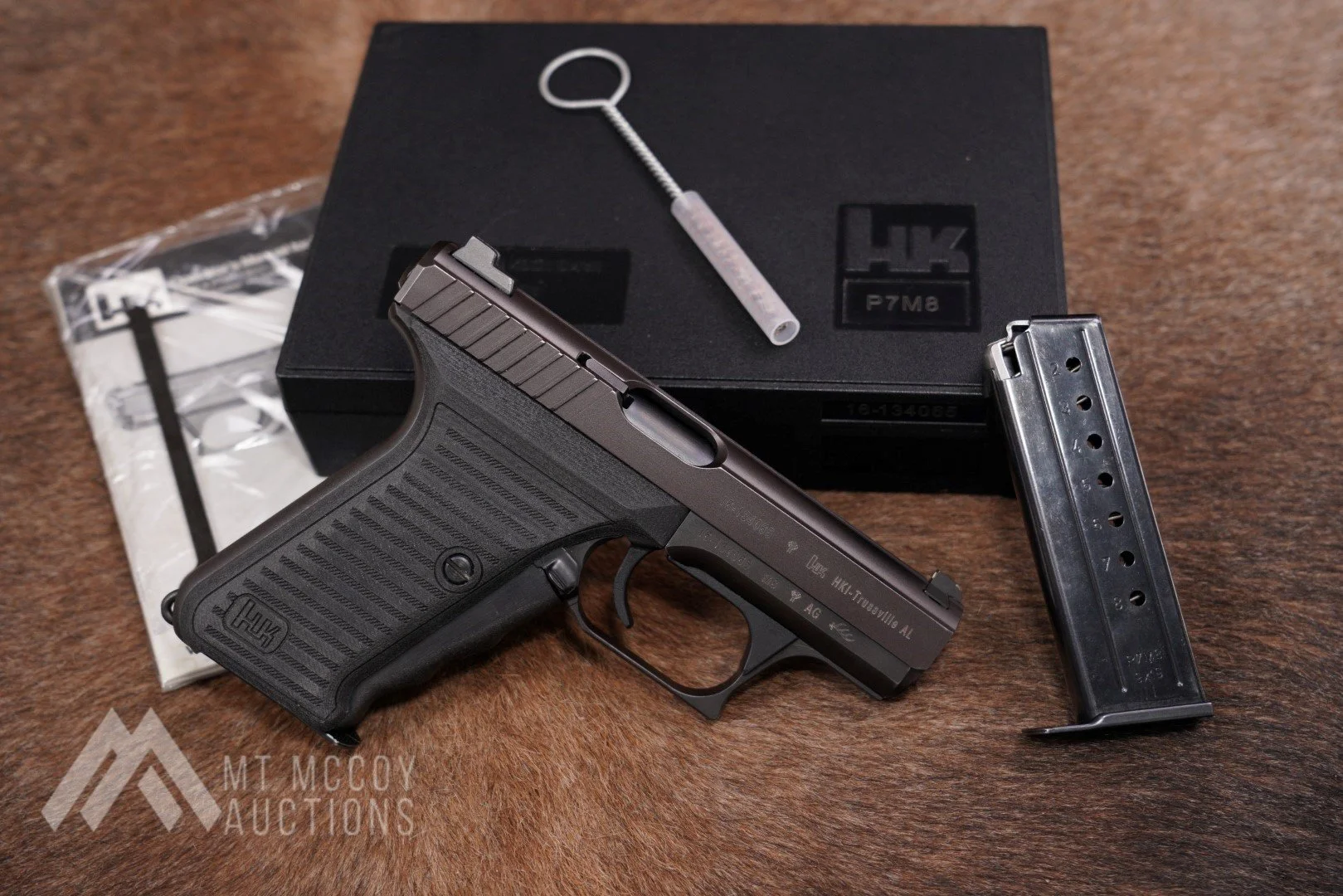

Includes a black plastic Heckler and Koch case with the serial number molded into the lid, a manual, a bore brush with plastic cover, and two 8 round magazines.
Our Assessment
The development of the P7 series was closely tied to West Germany’s search for a modern service pistol following the events surrounding the 1972 Munich Olympic massacre. The resulting design had to meet strict requirements for safety, reliability, size, and durability while chambered for the 9mm Parabellum cartridge.
Heckler and Koch’s answer was the P7, a pistol that combined gas delayed blowback operation with the innovative squeeze cocking system. This mechanism allowed the pistol to be carried safely with a round chambered while remaining instantly ready to fire when the front strap was squeezed. The design offered a remarkably low bore axis and excellent accuracy due in part to its fixed barrel.
The later P7M8 variant introduced several refinements over the original PSP model. A polymer heat shield was added inside the trigger guard to address heat buildup from the gas system, and the magazine release was moved from the heel of the frame to the rear of the trigger guard to better suit American and international service use.
This example, manufactured in 2002, comes from the later years of production and remains in Fine to Excellent condition with strong polygonal rifling and a tight action. Complete with its original box, accessories, and magazines, it represents a highly desirable example of one of the most distinctive service pistols of the modern era.
