CMP WWII Springfield M1D Garand Sniper — .30-06 Semi-Automatic Rifle with M84 Scope

Archival record: Specifications and condition reflect the firearm as listed at the time of auction.

Final Auction Price:$4,826.00

The Springfield Armory M1D Garand represents the U.S. Army’s dedicated sniper adaptation of America’s most famous service rifle. Originally manufactured in 1945 and later arsenal-converted to M1D configuration, this rifle reflects the post–World War II evolution of the Garand platform for scoped precision use. Sold through the Civilian Marksmanship Program (CMP), this example retains correct features, a proper Springfield M1D barrel, and a complete M84 scope assembly with extensive accessories.

Identification

MMA#: 251128SN011

Make: Springfield Armory

Model: M1D Garand

Serial Number: 3860379

Year of Manufacture: June 1945

Barrel Date: June 1952

Caliber: .30-06 Springfield

Action Type: Semi-automatic rifle fed by en bloc clips

Barrel Length: 24 inches

Markings & Components

Receiver: “U.S. RIFLE / CAL. .30 M1 / SPRINGFIELD / ARMORY / 3860379”

Trigger Group: “D28290-14-SA”

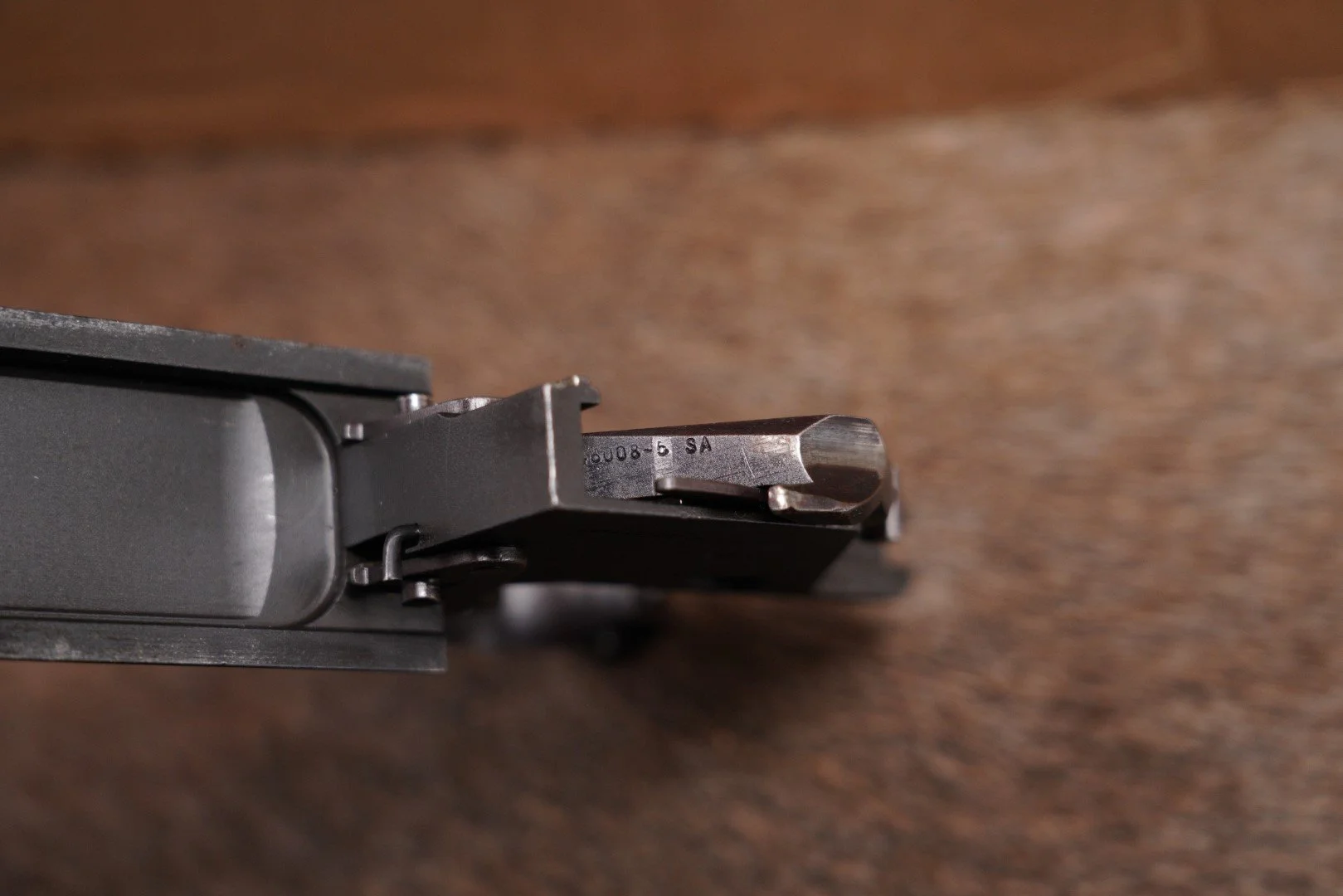

Hammer: “C46008-5 SA”

Safety: “C4601015-9SA”

Trigger Guard: “C46025 W.R.A.”

Op Rod: “7790722 SA” (Springfield National Match part)

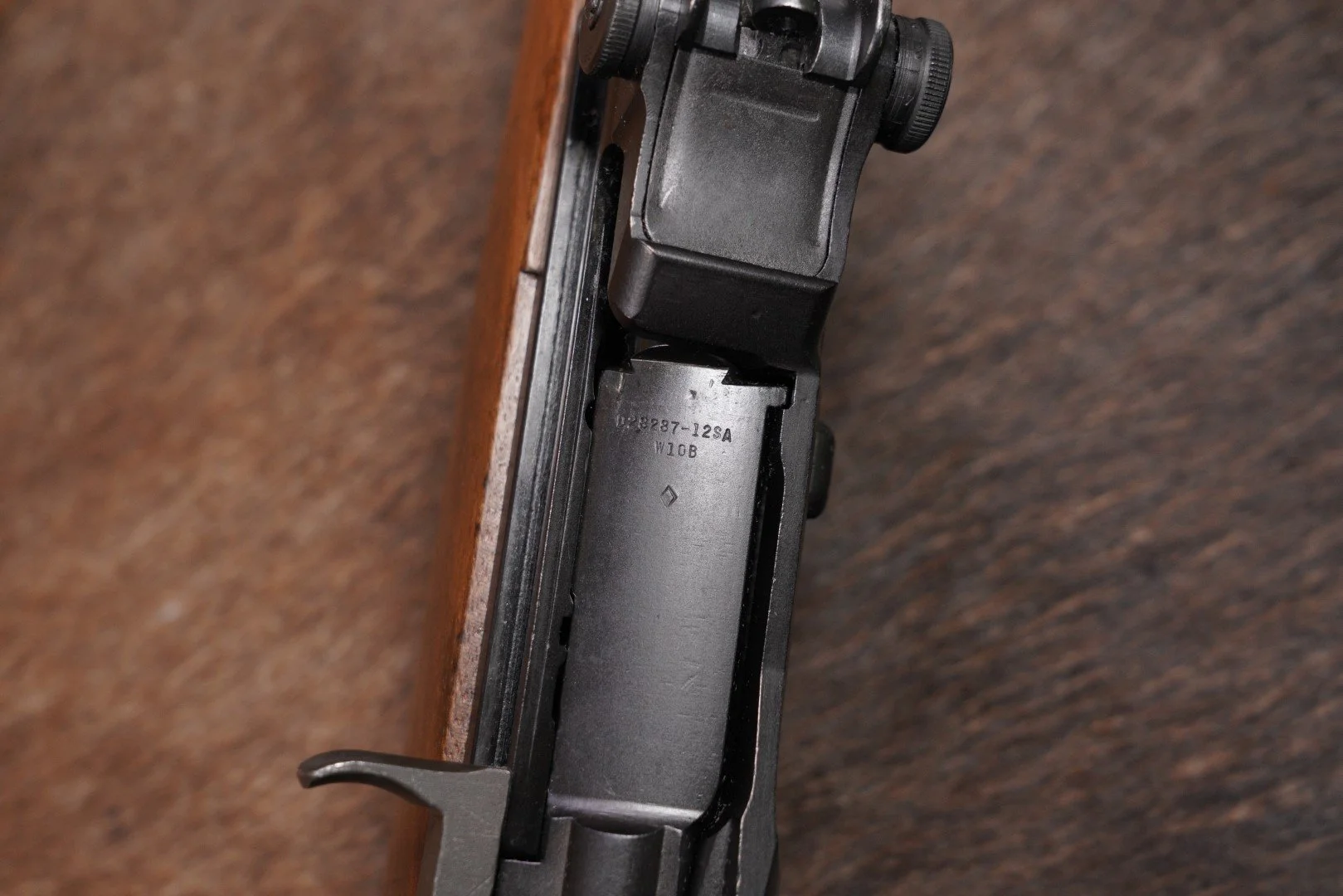

Bolt: “D28287-12SA / W10B / diamond”

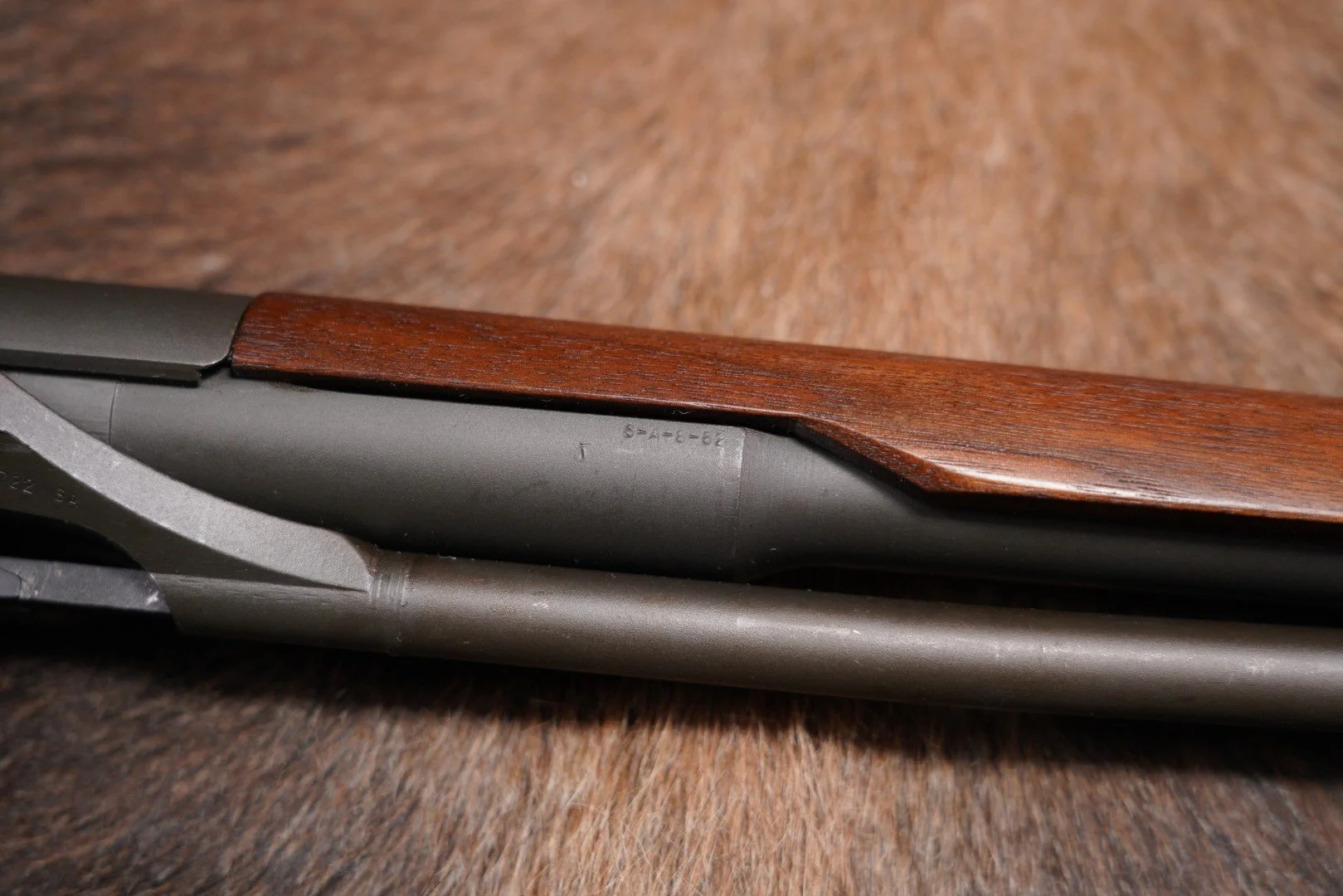

Barrel: “S-A-6-52” with correct drawing number “D7312555”

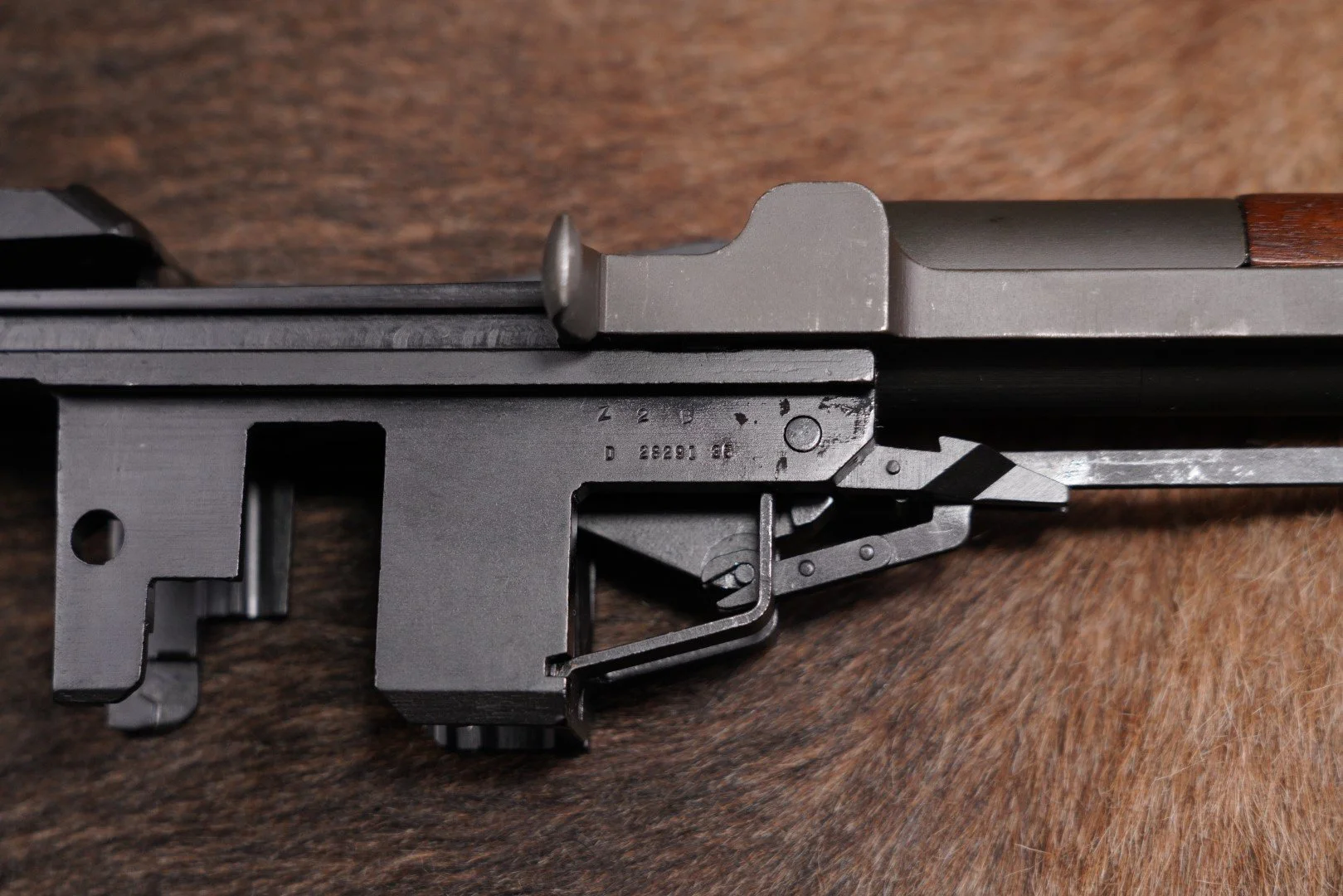

There is no import mark. The receiver leg drawing number “D28291-35” is correct for this Springfield serial range.

Sights / Optics

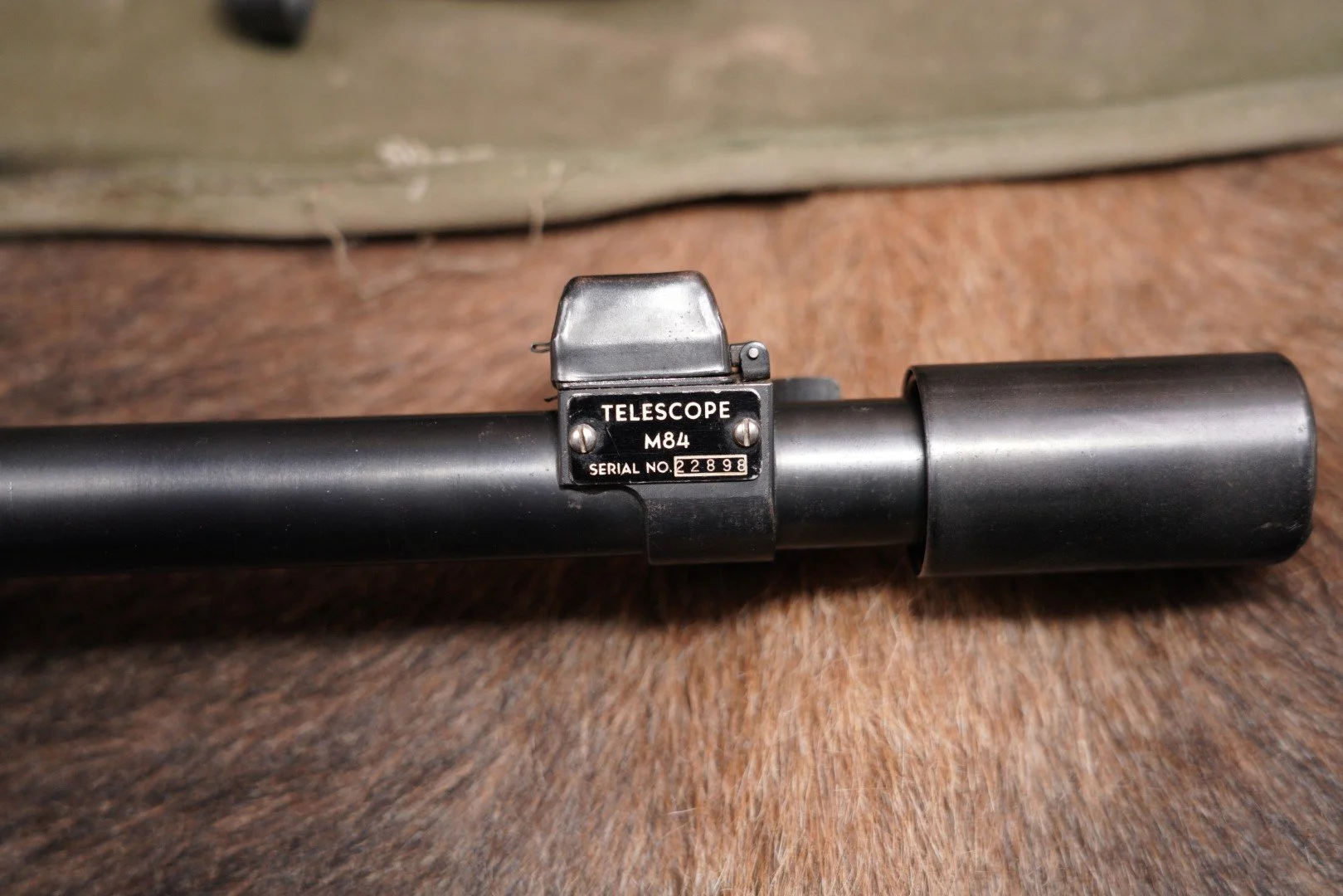

The rifle retains standard M1 Garand iron sights, including a protected front blade and a fully adjustable rear aperture. Included is a complete M84 scope assembly with hinged two-piece mount. The scope is a 2.2x M84 marked “TELESCOPE / M84 / SERIAL NO. 22898” and features a thin post reticle, sliding sunshade, rubber eyepiece, and capped adjustment knobs. The scope shows light wear, scattered scrapes, and minor oxidation. The sight picture is mostly clear with a few small internal flecks.

Stock Configuration & Condition

The hardwood stock features a pistol grip, metal nose caps, sling hardware, stacking loop, and a metal buttplate with hinged storage door. The grip face bears two circled “P” proofs, with additional military acceptance markings present. The wood shows scrapes, compression marks, and oiling consistent with service use. Some surface wood loss is visible. The length of pull measures approximately 13 inches. Overall stock condition: Very Good.

Finish & Overall Condition

Type of Finish: Parkerized

Finish Originality: Refinished receiver, bolt, and trigger group

This rifle retains approximately 97% of its refinished metal finish. There is light thinning on edges, minor scrapes on the barrel and gas system, and operational wear throughout. Markings remain well defined. Overall condition: Very Good Plus to Fine.

Bore & Mechanics

Bore Condition: Semi-bright with deep rifling, light fouling, minor erosion at the muzzle, and stubborn fouling near the gas port. Muzzle erosion measures 1.8, throat erosion measures 2. Bore rated 8.5/10.

Mechanics: The action functions correctly. The rifle has not been test-fired. Cleaning and inspection are recommended prior to use.

Box, Paperwork & Accessories

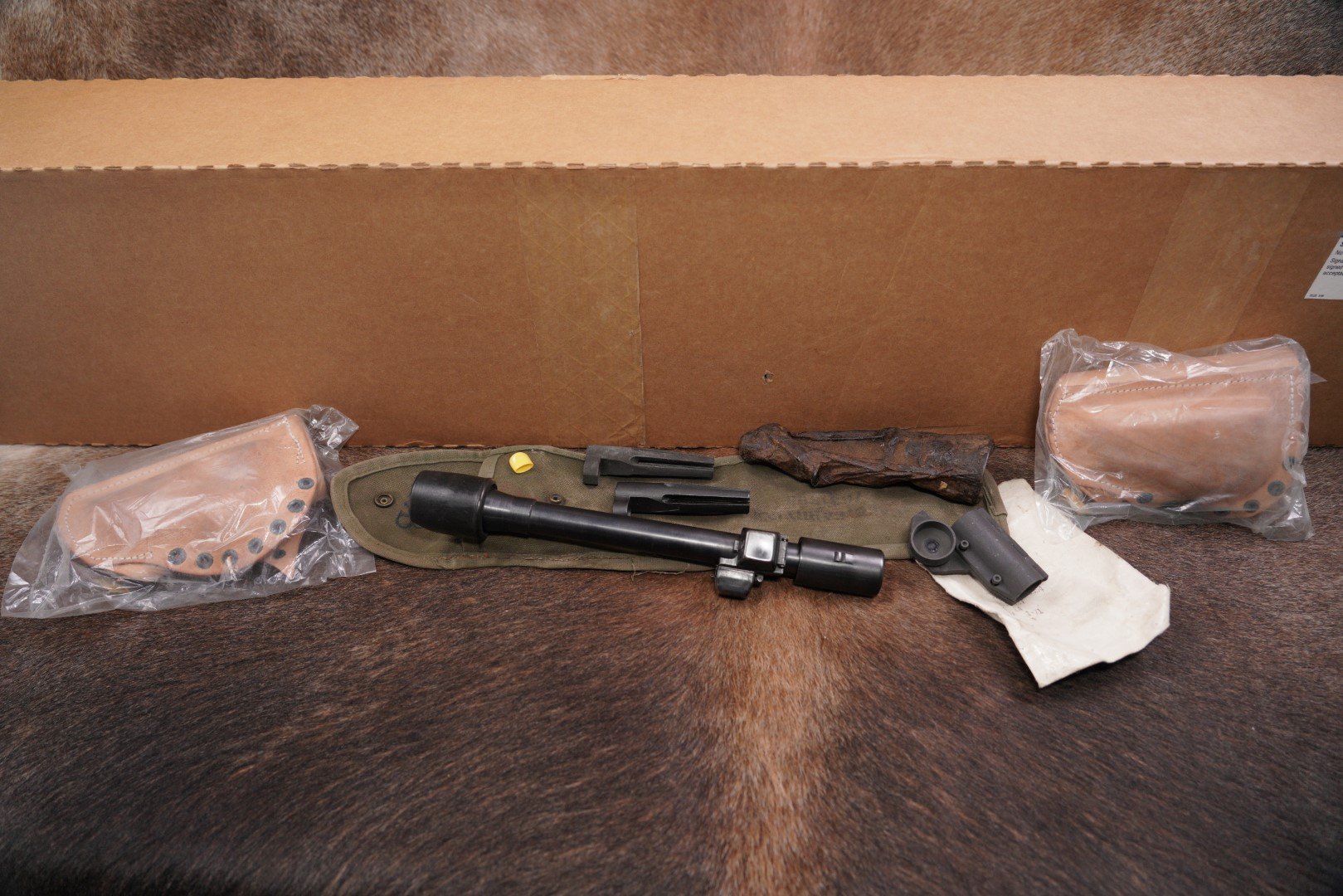

Included are the original CMP shipping box, M84 scope assembly, canvas scope case, two leather cheek pieces, a reproduction T-37 flash hider, a USGI T-37 flash hider, an M2 flash hider, CMP hang tag, and a Civilian Marksmanship Program Certificate of Authenticity marked with the rifle’s serial number and model designation.

Our Assessment

All M1D rifles were rebuilt rifles, assembled from existing M1 Garands and fitted with specialized barrels and scope mounting systems for sniper use. This Springfield Armory example follows that historical pattern, pairing a 1945 receiver with a correct 1952 Springfield M1D barrel. As documented by noted Garand historian Scott Duff, M1D rifles exhibit wide variation in components, with correctness defined by parts manufactured prior to the rebuild date.

This rifle’s CMP provenance, complete M84 scope assembly, correct barrel markings, and extensive accessories make it a compelling example of the M1D sniper program. With strong bore condition, solid mechanics, and documented authenticity, it stands as a meaningful addition to any WWII or U.S. military rifle collection.
